The Server Group Ltd

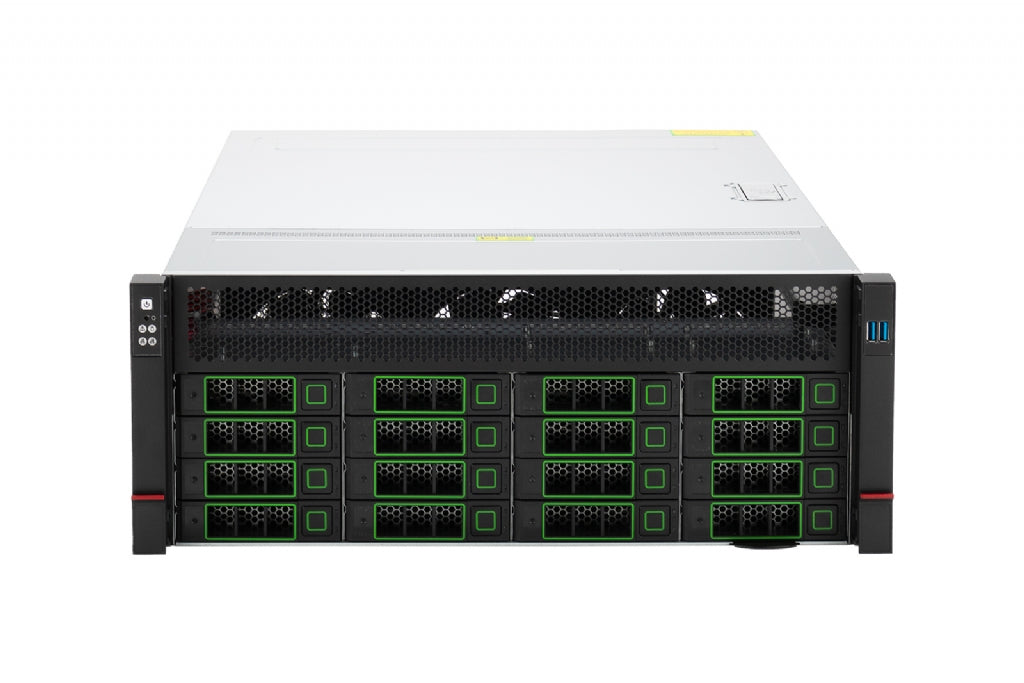

Logic Case LC-4680-16B-WH 4U Rackmount Storage Chassis - 16x 3.5 SATA Hot-Swap - 680mm Depth

SKU: LC-4680-16B-WH
£209.96
Sold out
Tax included. Shipping calculated at checkout.
Technical Details Case Form Factor 4U Rackmount Motherboard Compatibility Mini-ITX, Micro ATX, Standard ATX, Extended ATX Drive Bays External 5.25" 0 External 3.5" 0 Internal 3.5" 0 Internal 2.5" 0...

Out of stock - Contact our specialists on 01283 576848 for more information

Pairs well with

Logic Case LC-4680-16B-WH 4U Rackmount Storage Chassis - 16x 3.5 SATA Hot-Swap - 680mm Depth
£209.96
View details
Technical Details
Case Form Factor 4U Rackmount
Motherboard Compatibility Mini-ITX, Micro ATX, Standard ATX, Extended ATX
Drive Bays

External 5.25"

 0
External 3.5" 0
Internal 3.5" 0
Internal 2.5" 0
Hotswap 3.5" 16
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0
Hot-Swap Backplane 16x SAS/SATA 12Gbps with 4x SFF-8643 Connectors
Supplied with 4x Proprietary Molex to 8pin Pass-through Cables for Power (8x Molex Required). Note: Do not use any other cables, such as PSU Cable directly!
Expansion Slots Full Height 7
Low Profile 0
Cooling 3 x 120mm
Power Supply Form Factor Standard ATX or Mini Redundant
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 0
USB 3.0 2
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Black
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions 680mm*430mm*178mm (D*W*H)
Weight 17kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
Replaces Model SC-4316
