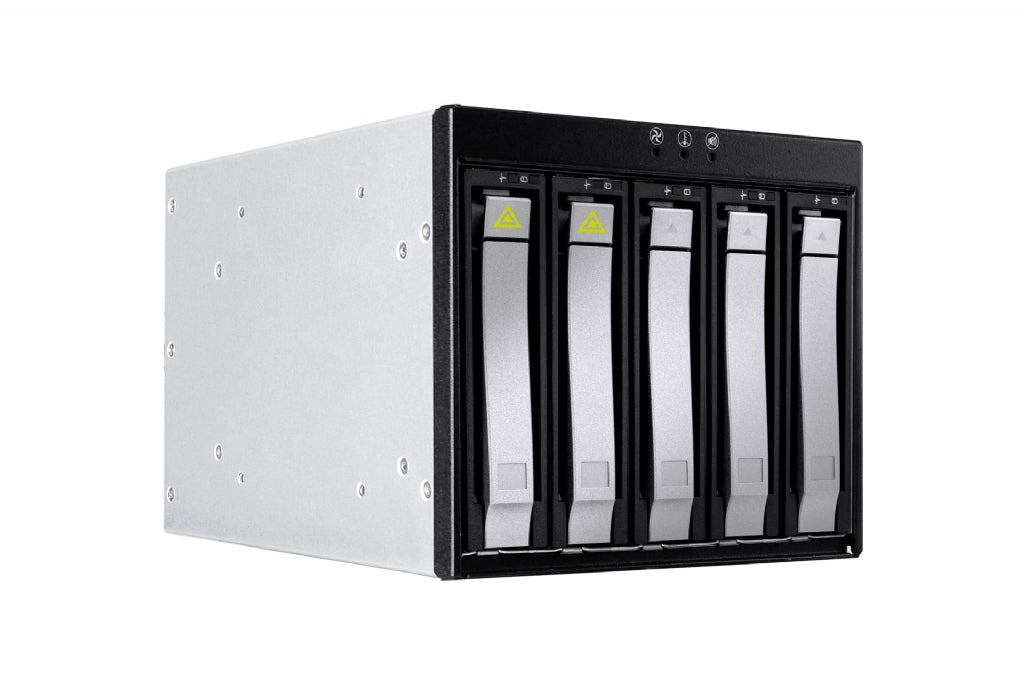

In-Win IW-SK35-07 - 5x 3.5" NVMe/SAS/SATA HDD in 3x 5.25" Bay Hot-Swap Module - OCuLink Connection

SKU: IW-SK35-07
£129.19
Shipping calculated at checkout.
Specification Drive Bay Hot-swap 2.5"/3.5" x 5 Indicator Fan failure, temperature spikes Front Control Panel Alarm mute Backplane • Host: Mini-SAS HD (SFF-8643) x 1, OCuLink (SFF-8611) x 2, SATA...

In stock & ready to ship

Pairs well with
In-Win IW-SK35-07 - 5x 3.5
£129.19

View details
Specification
Drive Bay Hot-swap 2.5"/3.5" x 5
Indicator Fan failure, temperature spikes
Front Control Panel Alarm mute
Backplane • Host: Mini-SAS HD (SFF-8643) x 1, OCuLink (SFF-8611) x 2, SATA x 1, SGPIO port
• HDD: SATA x 5, SAS/SATA x 4, NVMe SSD x 2
Data Transfer Rate 12Gbps
Cooling Fan 92 x 25mm PWM easy-swap fan x1, 4500RPM
Temperature 0°C (32°F) ~ 50°C (122°F)
Humidity 5% ~ 95% non-condensing
Product Dimensions (DxWxH) 224 x 148 x 127.3mm
(8.82" x 5.83" x 5")
Package Dimensions (DxWxH) 189 x 309 x 224mm
Weight • Net weight: 2.79kg
• Gross weight: 3.2kg

12Gbps Backplane Specifications

Backplane Mini-SAS HD, SATA & OCuLink backplane
Dimension (W x H) 137 x 107mm
Backplane Type Passive
Host Interface Mini-SAS HD (SFF-8643) x 1, OCuLink (SFF-8611) x 2, SATA x 1, SGPIO port
HDD Interface SAS/SATA x 5 or SAS/SATA x 3 and NVMe SSD x 2
