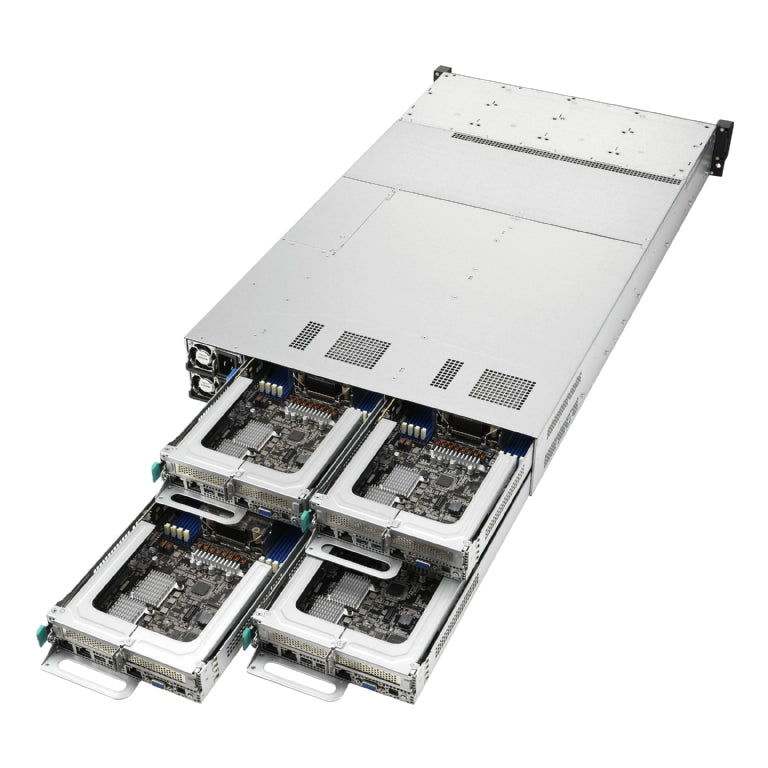

ASUS RS720Q-E11-RS8U 2U Rackmount Quad Node Dual Socket 4th Gen Intel Xeon Scalable Server - Redundant PSU

SKU: 90SF02K1-M00070
£0.00
Sold out
Tax included. Shipping calculated at checkout.
Processor / System Bus Per node:2 x Socket P (LGA 4677)4th Gen Intel® Xeon® Scalable processors(Up to 350W) Generation E11 Core Logic Intel® C741 Memory Per node:16 x DIMM slotsDDR5...

Out of stock - Contact our specialists on 01283 576848 for more information

Pairs well with

ASUS RS720Q-E11-RS8U 2U Rackmount Quad Node Dual Socket 4th Gen Intel Xeon Scalable Server - Redundant PSU
£0.00

Compatible Products
ASUS RS720Q-E11-RS8U 2U Rackmount Quad Node Dual Socket 4th Gen Intel Xeon Scalable Server - Redundant PSU
£19.99
ASUS RS720Q-E11-RS8U 2U Rackmount Quad Node Dual Socket 4th Gen Intel Xeon Scalable Server - Redundant PSU
£19.99
ASUS RS720Q-E11-RS8U 2U Rackmount Quad Node Dual Socket 4th Gen Intel Xeon Scalable Server - Redundant PSU
£19.99
ASUS RS720Q-E11-RS8U 2U Rackmount Quad Node Dual Socket 4th Gen Intel Xeon Scalable Server - Redundant PSU
£19.99
View details

  • Processor / System Bus

    Per node:
    2 x Socket P (LGA 4677)
    4th Gen Intel® Xeon® Scalable processors
    (Up to 350W)

  • Generation

    E11

  • Core Logic

    Intel® C741

  • Memory

    Per node:
    16 x DIMM slots
    DDR5 4800 RDIMM/RDIMM 3DS
    Maximum up to 2 + 4 TB (Per Node, DDR5 + Crow Pass)

  • Expansion Slots

    Per node:
    Up to 2 slots
    2 x PCIe x16 slot (Gen5 x16 link, HHHL)

  • Storage

    Per node:
    SAS/SATA Controller :
    LSI 3008 8-port SAS 12G Controller (Option)

  • Drive Bays

    8 x 2.5" Front Hot-swap drive bays
    (Up to 8 x NVMe/SATA/SAS)*

    Per node:
    2 x M.2 (Up to 22110, SATA or Gen4 x2 link)

    * Converter Board with SAS 3008 is required to support RAID and SATA/SAS
    hard drives

  • Networking

    Per node:
    2 x Intel X710
    1 x Management Port

  • Graphic

    Aspeed AST2600 with 64MB VRAM

  • Rear I/O Ports

    Per Node:
    2 x USB 3.0 ports
    1 x VGA port
    1 x RJ-45 GbE LAN ports
    1 x RJ-45 Management port

  • Switch/LED

    Per Node:
    Rear:
    1 x Power Switch/LED
    1 x Q-Code/Port 80 LED
    Front:
    1 x Power Switch/LED
    1 x Location Switch/LED
    1 x Message LED
    2 x LAN LED

  • OS Support

    Please find the latest OS support from https://servers.asus.com/support/os

  • Management Solution

    Optional ASUS Control Center Enterprise
    On-Board ASMB11-iKVM

  • Dimensions

    800 x 444 x 88mm
    31.5" x 17.48" x 3.46"

  • Form Factor

    2U

  • Weight

    Net Weight: 32.50 kg
    Gross Weight: 41.50 kg

  • Power Supply

    1+1 Redundant 3000W 80 PLUS Titanium Power Supply

    *1+1 redundant mode only supports CPUs under 205W

  • Environment

    Operation temperature: 10℃ ~ 35℃
    Non operation temperature: -40℃ ~ 70℃
    Non operation humidity: 20% ~ 90% (Non
    condensing)

  • Note

    1. For the full function of the system, please install both CPUs on each node.

    2. Certain high TDP CPUs may be supported only with specific conditions. Please contact ASUS Technical Support for additional information and Thermal solution about specialized system optimization.
