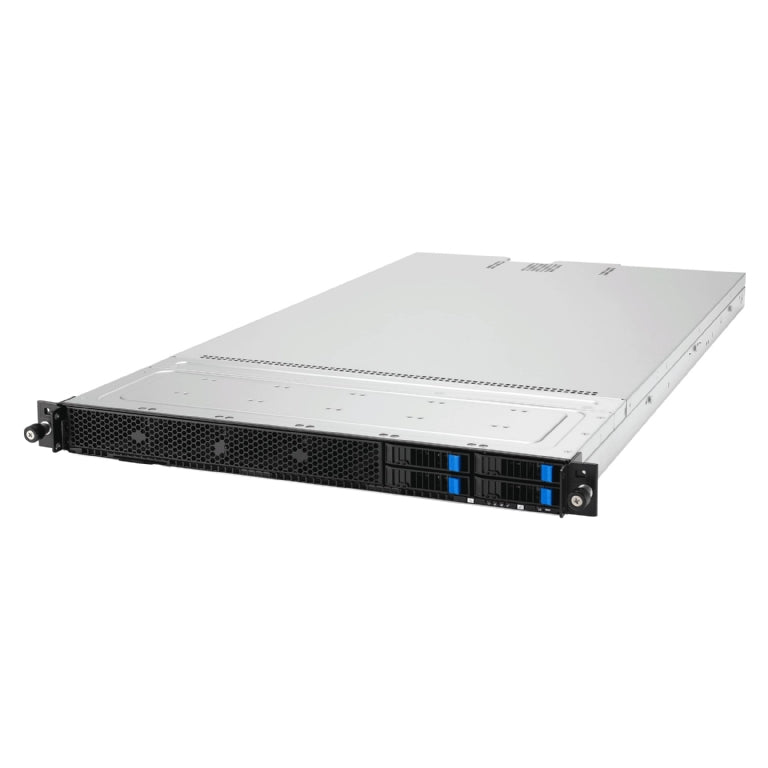

ASUS RS501A-E12-RS4U 1U Rackmount Single 9005 Series AMD EPYC Server - 4x All-Flash Hot-Swap Bays - Redundant PSU

1 x Socket SP5 (LGA 6096)
5th Generation AMD EPYC Processors or 4th Generation AMD EPYC Processors
AMD EPYC™ 9005/9004 Series Processors (Air cool with EVAC up to 450W)

24 x DIMM slots
DDR5 6400 RDIMM/ 3DS RDIMM
Maximum 2,304GB

with AMD EPYC™ 9005 series processors
2DPC (1 of 2) up to 5200
2DPC (2 of 2, 1R+1R ) up to 4400,
2DPC (2 of 2, 2R+2R ) up to 4000

with AMD EPYC™ 9004 series processors
2DPC (1 of 2) up to 4800,
2DPC (2 of 2, 1R+1R ) up to 4000
2DPC (2 of 2, 2R+2R ) up to 3600

* Refer to support page for more information

Up to 3 PCIe Gen5 slots + 1 OCP3.0
1 x PCIe x16 slot (Gen5 x16 link, FH, HL)
1 x PCIe x16 slot (Gen5 x16 link, LP, HL)
1 x PCIe x16 slot (Gen5 x8 link, LP, HL)
1 x OCP3.0 socket (Gen5 x16 link)

Storage Controller :
CPU Integrated
Optional kits Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G HBA card

Front bays:
4 x 2.5” Hot-swap Storage Bays
4 x SATA/SAS/NVMe*

*SAS support only from optional SAS
HBA/RAID card

2 x M.2 connectors

1 x Dual Port Intel I350-AM2 GbE LAN Controller

1 x Management Port

Up to 2 single-slot GPU cards

Please find the latest GPU support from https://servers.asus.com/support/GPU

2 x USB 3.2 Gen1 ports
1 x VGA port
1 x Management port
2 x 1GbE LAN ports

Front:
1 x Power Button/LED
1 x Location Button/LED
1 x Message LED
LAN 1-2 LED
Rear:
1 x Port80 LED (Q-Code)
1 x Power Button/LED
1 x Location Button/LED
1 x Message LED

Please find the latest OS support from:
https://servers.asus.com/support/os

ASUS Control Center
ASUS ASMB11-iKVM (on-board)

BSMI, CB, CE, RCM, FCC(Class A), ENERGY STAR®

842.5mm x 449mm x 43.85mm (1U)
33.17" x 17.68" x 1.73"

1U

(approximate)
Net Weight: 14.16 kg
Gross Weight: 19.16 kg

1+1 Redundant 1600W 80 PLUS Titanium
Power Supply
1+1 Redundant 1200W 80 PLUS Platinum
Power Supply

Operating temperature: 10°C – 35°C
Non operating temperature: -40°C – 70°C
Non operating humidity: 20% – 90% (Non condensing)

Note
Operating Temperature based on configurations

Rail Kit:
Tool-less Friction Rail Kit
1.2m Half Extension Ball bearing Type Rail Kit
1m Half Extension Ball bearing Type Rail Kit
1U Height Full Extension Ball bearing Type Rail Kit
*Please consult sales if cable arm needed.
1U Front Bezel

Certain high TDP CPUs may be supported only with specific conditions. Please contact ASUS Technical Support for additional information and Thermal solution about specialized system optimization.
