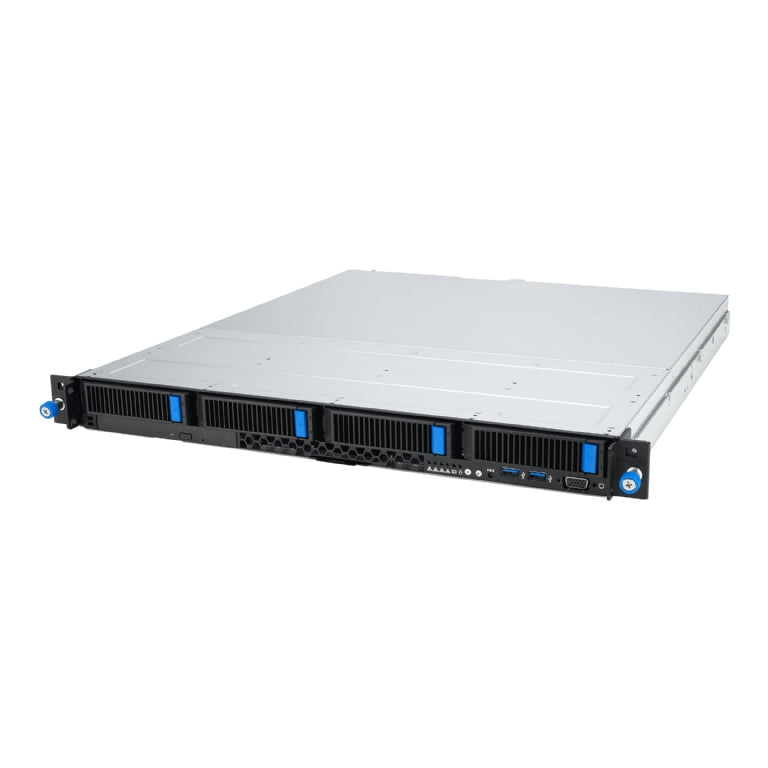

ASUS RS300-E12-PS4 1U Rackmount Xeon E-2400 Series Server - 4x Hot-Swap Bays - Dual Gigabit LAN - Single PSU

SKU: 90SF03A1-M00060
£860.15
Tax included. Shipping calculated at checkout.
Processor / System Bus 1 x Socket LGA1700Intel® Xeon® processor E-2400 familyIntel® Pentium™ processors*Refer to support page for more information Generation E12 Core Logic Intel® C262 Chipset Memory Total Slots...

In stock & ready to ship

Pairs well with

ASUS RS300-E12-PS4 1U Rackmount Xeon E-2400 Series Server - 4x Hot-Swap Bays - Dual Gigabit LAN - Single PSU
£860.15

Compatible Products
ASUS RS300-E12-PS4 1U Rackmount Xeon E-2400 Series Server - 4x Hot-Swap Bays - Dual Gigabit LAN - Single PSU
£19.99
ASUS RS300-E12-PS4 1U Rackmount Xeon E-2400 Series Server - 4x Hot-Swap Bays - Dual Gigabit LAN - Single PSU
£19.99
ASUS RS300-E12-PS4 1U Rackmount Xeon E-2400 Series Server - 4x Hot-Swap Bays - Dual Gigabit LAN - Single PSU
£19.99
ASUS RS300-E12-PS4 1U Rackmount Xeon E-2400 Series Server - 4x Hot-Swap Bays - Dual Gigabit LAN - Single PSU
£19.99
View details

  • Processor / System Bus

    1 x Socket LGA1700
    Intel® Xeon® processor E-2400 family
    Intel® Pentium™ processors
    *Refer to support page for more information

  • Generation

    E12

  • Core Logic

    Intel® C262 Chipset

  • Memory

    Total Slots :
    4 (2-channel)
    Capacity :
    Maximum up to 128GB UDIMM
    Memory Type :
    DDR5 4400/4000/3600 UDIMM
    Memory Size :
    32GB, 16GB, 8GB UDIMM
    * Refer to support page for more information

  • Expansion Slots

    Total PCI-E Slots: 3
    1 x PCI-E x 16 (Gen5 x16 Link, switch to x8 link when slot B occupied), FH/HL
    1 x PCI-E x 8 (Gen5 x8 Link), HH/HL*
    1 x PCI-E x 4 (Gen4 x4 Link), Proprietary R/A slot
    (optional for Intel X710 10G LAN card or PEI-1G/I210-2T/M,2 card)

  • Storage

    Storage Controller :
    Intel® C262 Chipset
    8 x SATA3 6Gb/s ports
    SAS Controller :
    ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
    ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card

  • HDD Bays

    4 x 3.5” Hot-Swap HDD Bays
    -up to (4*SATA/SAS/NVMe)
    *SAS support only from optional SAS HBA/RAID card
    *NVMe support only from optional NVMe upgrade kit

  • Auxiliary Storage FDD/CD/DVD

    1 x Slim-type Optical Drive Bay
    Options: No Device / DVD-RW / DVD-ROM

  • Networking

    2 x Intel® I210AT + 1 x Mgmt LAN

  • Graphic

    Aspeed AST2600 with 64MB VRAM

  • Multi-GPU Support

    Please find the latest GPU support from
    https://servers.asus.com/support/gpu

  • Front I/O Ports

    1 x VGA port
    2 x USB 3.2 Gen1 ports

  • Rear I/O Ports

    3 x USB 3.2 Gen 2 ports
    1 x VGA port
    1 x COM port
    1 x RJ-45 ports

  • Switch/LED

    Rear Switch/LED:
    1 x Q-Code/Port 80 LED
    1 x Power switch
    Front Switch/LED:
    1 x Power switch/LED
    1 x Location switch/LED
    1 x Reset switch
    1 x HDD Access LED
    1 x Message LED
    LAN 1-2 LED

  • OS Support

    Please find the latest OS support from https://servers.asus.com/support/os

  • Management Solution

    ASUS Control Center Enterprise On-Board ASMB11-iKVM for KVM-over-Internet

  • Regulatory Compliance

    BSMI, CE, CB, FCC(Class A)

  • Dimensions

    497mm x 439.5mm x 44mm

  • Form Factor

    1U

  • Weight

    13.47kg

  • Power Supply

    Single 350W 80 PLUS Gold Power Supply
    Rating: 100-240Vac, 6.3-3A 60-50Hz, Class 1

  • Environment

    Operating temperature: 10°C ~ 35°C
    Non operating temperature: -40°C ~ 70°C
    Non operating humidity: 20% ~ 90% ( Non condensing)
