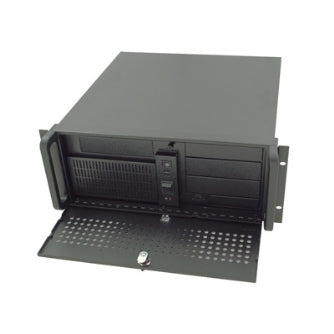

AIC 4U Short Chassis 4 x 5.25" External + 1 x 3.5" External + 2 x 3.5" Internal

SKU: RMC-4B
£207.60
Sold out
Tax included. Shipping calculated at checkout.
NOTE: This chassis is for SBC computing systems only and will not accept an ATX motherboard. Please see our IPC-C4B chassis for the ATX version. Applications Internet Server (Web /...

Out of stock - Contact our specialists on 01283 576848 for more information

Pairs well with

AIC 4U Short Chassis 4 x 5.25
£207.60

Compatible Products
AIC 4U Short Chassis 4 x 5.25" External + 1 x 3.5" External + 2 x 3.5" Internal
£19.99
AIC 4U Short Chassis 4 x 5.25" External + 1 x 3.5" External + 2 x 3.5" Internal
£19.99
AIC 4U Short Chassis 4 x 5.25" External + 1 x 3.5" External + 2 x 3.5" Internal
£19.99
AIC 4U Short Chassis 4 x 5.25" External + 1 x 3.5" External + 2 x 3.5" Internal
£19.99
View details

NOTE: This chassis is for SBC computing systems only and will not accept an ATX motherboard. Please see our IPC-C4B chassis for the ATX version.

Applications
  • Internet Server (Web / Mail)
  • CCTV Surveillance DVR
  • Military Application
  • Industrial / Telecom Computers
Product Details
Model C4B (RMC-4B-2)
Order Information IPC-C4B-N
Technical Details
Colour Black
System Board BP Version: (SBC)
Drive Bays External 5.25" 4
External 3.5" 1
Internal 3.5" 2
+ 2(IPC-SB1028 + -1)
Internal 2.5" 0
Hotswap 3.5" 0
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0
Materials & Finish
  • Materials: Heavy-duty preplated SPGC cold-rolled steel
  • Finish:
    Inside / Body: Zinc-plated with bright chromate
    Outside / Front: Texture-coated on front panel
Cooling
  • Front: 2 x 92mm ball-bearing fans
    (+ optional 2 x 60mm exhaust fans)
Power Supply PS/2 Size (Optional)
Expansion Slots 14-slot for backplane version
(IPC-SB1010)
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2
Lan 0
Serial 0
Indicators Power and HDD LEDs
Environmental Specifications
  • Temperature: 0ºC(32ºF) ~ 50ºC(122ºF)
  • Humidity: 5%~95% non-condensing
Dimensions & Weights
Product Dimensions (WxDxH) mm: 482.6 x 449.58 x 177.8
inches: 19" x 17.7" x 7"
Packaging Dimensions (WxDxH) mm: 620 x 580 x 340
Weight (kgs)
  • Gross: 15 kgs / 33 lbs
Cubic Feet 3.2cuft
