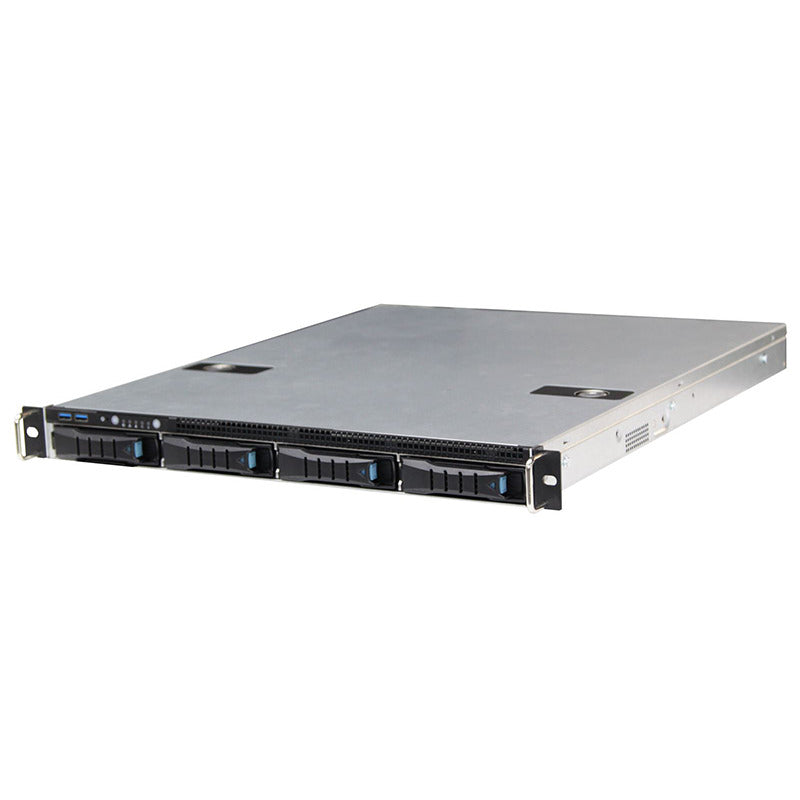

AIC 1U 12G Short Storage Server Chassis 4 x 3.5" Hot-Swap + 4 x 9mm 2.5" Internal with 400W Single PSU (Rails Included) * Expander On Board

SKU: RSC-1DTS-BAS4-12G
£430.80
Sold out
Tax included. Shipping calculated at checkout.
Key Features • Tool-less design supports quick installation and easy maintenance:- Tool-less 2.5" drive trays- Tool-less slide rail• Supports 4 x 12G 3.5" hot swap drive bays• Includs 400W single...

Out of stock - Contact our specialists on 01283 576848 for more information

Pairs well with

AIC 1U 12G Short Storage Server Chassis 4 x 3.5
£430.80

Compatible Products
AIC 1U 12G Short Storage Server Chassis 4 x 3.5" Hot-Swap + 4 x 9mm 2.5" Internal with 400W Single PSU (Rails Included) * Expander On Board
£19.99
AIC 1U 12G Short Storage Server Chassis 4 x 3.5" Hot-Swap + 4 x 9mm 2.5" Internal with 400W Single PSU (Rails Included) * Expander On Board
£19.99
AIC 1U 12G Short Storage Server Chassis 4 x 3.5" Hot-Swap + 4 x 9mm 2.5" Internal with 400W Single PSU (Rails Included) * Expander On Board
£19.99
AIC 1U 12G Short Storage Server Chassis 4 x 3.5" Hot-Swap + 4 x 9mm 2.5" Internal with 400W Single PSU (Rails Included) * Expander On Board
£19.99
View details
Key Features

• Tool-less design supports quick installation and easy maintenance:
- Tool-less 2.5" drive trays
- Tool-less slide rail
• Supports 4 x 12G 3.5" hot swap drive bays
• Includs 400W single power supply
• Support 1 full height expansion slot
• One front access USB 3.0 port

RSC-1DTS is a T-series 1U SAS/SATA storage server chassis supports external 4 x 12G 3.5" hot swap and internal 4 x 2.5" (9mm) drive bays. This environmentally friendly solution features high-efficiency power supply, SGCC pre-plated steel, tool-less ball-bearing mounting rail, easy-swap PWM fans, and overall short depth, offering a cost-effective solution ideally suited for a broad range of applications, and especially space-concerned users. (Power supply is included. Motherboard is not included.)

Dimensions (W x D x H)
• mm: 483 x 560 x 43.5
• inches: 17 x 22 x 1.72
Industry Standard
EIA-RS310D
Material
SGCC
Color
Front Panel: Black
Cooling
Middle: 4 x 40x28mm PWM fans
Power Supply
Standard: 400W single PSU
Option: 300W 1+1 redundant
Expansion Slot
1 full height
Front Panel
System power on/off and system reset, 1 x USB 3.0 port
LED Indicators
• Power
• HDD
• LAN
System Board
Up to 12"(W) x 9.6"(D) ATX MB
Drive Bays
• External: 3.5" hot swap x 4
• Internal: 2.5" x 4 (9mm)
Backplanes
4-port with SFF-8643 connector supports 12G
Storage Temperature
0°C(32°F) ~ 50°C(122°F)
Humidity
5% ~ 95% non-condensing
Gross Weight (w/ PSU & Rail)
• kgs: 14
• lbs: 30.9
Package Dimension (W x D x H)
• mm: 588 x 730 x 178
• inches: 23.1 x 28.7 x 7
Cubic Feet
4.2
Container Load Quantity
• 20’: 200
• 40’: 400
• 40’H: 450
Mounting
Standard: 28” tool-less slide rail
