The Server Group Ltd

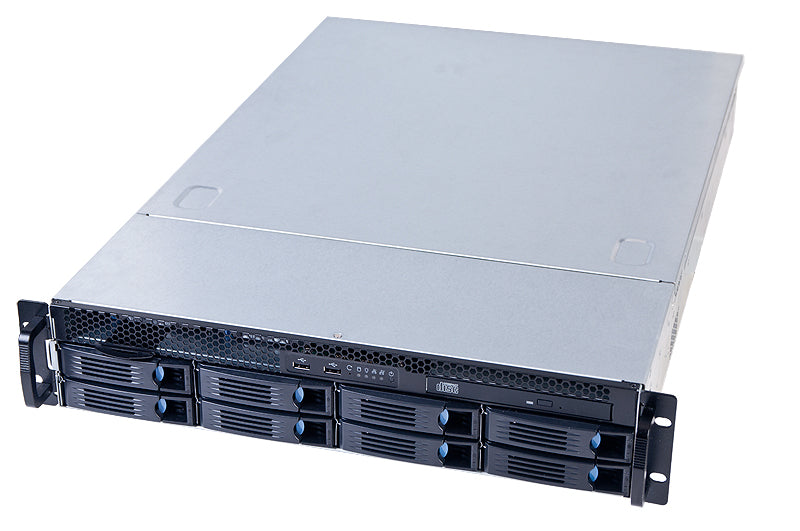

2U Entry Computing and Storage Server Chassis - 8x 3.5" Hot-Swap

Name: 2U Entry Computing and Storage Server Chassis - 8x 3.5" Hot-Swap
Brand: The Server Group Ltd
SKU: RM23608
Price: 141.60 GBP
Availability: InStock

SKU: RM23608

£141.60

Tax included. Shipping calculated at checkout.

2U Entry Computing and Storage Server Chassis Features & Benefits · 8-port 6Gb/s SATA/SAS Backplane Included. 8x Individual SATA/SAS Connections (Discrete - Not MiniSAS)· Easy-swap 3-slot and 7-slot rear windows·...

In stock & ready to ship

Quantity:

2U Entry Computing and Storage Server Chassis - 8x 3.5

£141.60

Compatible Products

2U Entry Computing and Storage Server Chassis - 8x 3.5" Hot-Swap

£19.99

2U Entry Computing and Storage Server Chassis - 8x 3.5" Hot-Swap

£19.99

2U Entry Computing and Storage Server Chassis - 8x 3.5" Hot-Swap

£19.99

2U Entry Computing and Storage Server Chassis - 8x 3.5" Hot-Swap

£19.99

View details

Description

2U Entry Computing and Storage Server Chassis

Features & Benefits

· 8-port 6Gb/s SATA/SAS Backplane Included. 8x Individual SATA/SAS Connections (Discrete - Not MiniSAS)
· Easy-swap 3-slot and 7-slot rear windows
· Built-in 2 x 2.5" internal HDD brackets
· Built-in info tag

Specification

Order Code

RM23608T2-L

Description

2U, 8-bay, with 6Gb/s 8-port SATA/SAS backplane and hot-swap 8025mm PWM fans

M/B Form Factor

EEB (12"X13")

Processor

Intel / AMD UP Quad
Intel / AMD DP Quad

Support Backplane

6G SATAIII & SAS

Chassis Dimension

D x W x H (mm)	660 x 430 x 88
D x W x H (inch)	26 x 16.9 x 3.5

Power Supply

Form Factor	2U single or Redundant
Watt	Option

Drive Bay

Hot-Swap 3.5"	8
Internal 2.5"	2
Slim ODD	1

Generality

Metal Material	SGCC
Metal Thickness	1.2mm
Plastic Material Type	ABS-HB

Expansion Slots

LP/Full

7/3 easy swap

System Cooling

Middle

3 x 80mm (T=25mm), PWM

Rear Window

Riser

Slide Rail

Option

Front Panel

Front Control	Power On/Off System Reset
Indicator	Power LED HDD Activity LED LAN Activity LED(x2)
Ports	USB 2.0(x2)

Shipping Information*

Net Weight (Chassis Only)		11kg
Gross Weight (w/Packing)		12.7kg
Cubic Feet		4.98
Container Information
	20'	314 (Single)
	40'	638 (Single)
	40'H	690 (Single)

* Actual weight varies by configuration and manufacturing process.
* The specification and pictures are subject to change without notice.

Package Contain

Part Category	Qty.	Description
Chassis	1	2U chassis base
HDD Trays	8	Front access, for 3.5" HDD
Fans	3	80mm(T35mm), PWM, 4500 RPM
Cables	1	Display, 800mm
	4	Fan extension, 330mm
	1	USB 2.0, 750mm, Intel specification
Bracket	1	PSU, for P2G series
Bracket	1	7-slot low-profile rear window
Packing	1	Single carton with Chenbro logo
PCB	1	Slim ODD adapter (SATA to SATA)

Specification & Downloads

Download Table
File	Size	Date	Download
Document file 3.5Mb/2024-05-01	3.5Mb	2024-05-01	Download
Document file 3.5Mb/2024-05-01	3.5Mb	2024-05-01	Download
Document file 3.5Mb/2024-05-01	3.5Mb	2024-05-01	Download
Document file 3.5Mb/2024-05-01	3.5Mb	2024-05-01	Download
