Description
Key Features
- High-density design for space saving
- 8 x 12Gb/s 3.5 Tool-less drive bays
- 2 x Front 2.5" HDD
- 1 x Slim Optical
- Tool-less design supports quick installation and easy maintenance:
- Tool-less top covers
- Lockable Front Bezel
- 3 x easy swap middle fans for superior cooling

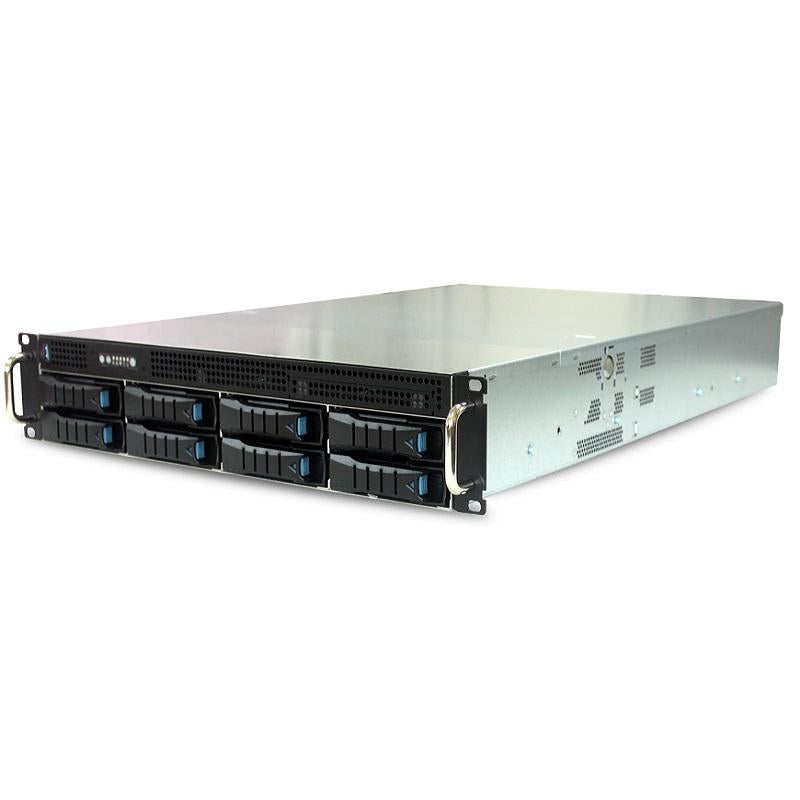

The IPC- C2KTS is a T-series 2U 8-bay SAS/SATA storage server chassis that has been designed around quick installation, easy maintenance and cost competitive, with tool-less design 3.5” and 2.5” hard drive carriers and top cover. Fan are Easy swap design X3 with low-power consumption, SPGC pre-plated steel with minimal paint , offering a cost- effective solution ideally suited for a broad range of application. (Power supply is included. Motherboard is not included).
Dimensions (W x D x H) (with chassis ears)
• mm : 430 x 560 x 88
• inches : 17 x 22 x 3.5
Industry Standard
EIA-RS310D
Material
Heavy-duty preplated SGCC cold-rolled steel
Color
Front Panel : Black
Cooling
Middle : 3 x 80x38mm PWM & low-power consumption hot swap fans
Power Supply
550W Redundant Industrial PSU PMBus 1.2 80+ Platinum
Expansion Slots
7 x Low profile
Front Panel
• Power on/off
• System reset
• 1 x USB 3.0 port
LED Indicators
• Power
• LAN
• Drive
• Alert
System Board
Up to 12” x 9.6” ATX / SSI EEB 3.6 compliant MB
Drive Bays
• External : 8 x 3.5” hot swap
• Internal : 2 x internal and 1 x Slim Optical
• External Rear : Rear 2 x Hot Swap OS SDD
Backplane
2 x 4-port 12Gb SATA/SAS backplanes with SFF-8643 connector
Storage Temperature
0°C(32°F) ~ 50°C(122°F)
Humidity
5% ~ 95% non-condensing
Gross Weight (w/ PSU & Rail)
• kgs : 20
• lbs : 44.09
Package Dimension (W x D x H)
• mm: 577 x 835 x 234
• inches: 22.7 x 32.8 x 9.2
Cubic Feet
3.88
Container Load Quantity
• 20’: 200
• 40’: 460
• 40’ H: 506
Mounting
Standard : 28” tool-less slide rail
