Description
Key Features
- Rugged design to meet most applications.
- Front ventilation for superior cooling.
- Front Access Dual USB 3 Port for software maintenance.
- 1 x 40x40x28 mm (4P) fan standard, 2x optional
- Short depth design for space critical applications
- Equipped with 250watt PSU 80+ Gold
Features & Benefits

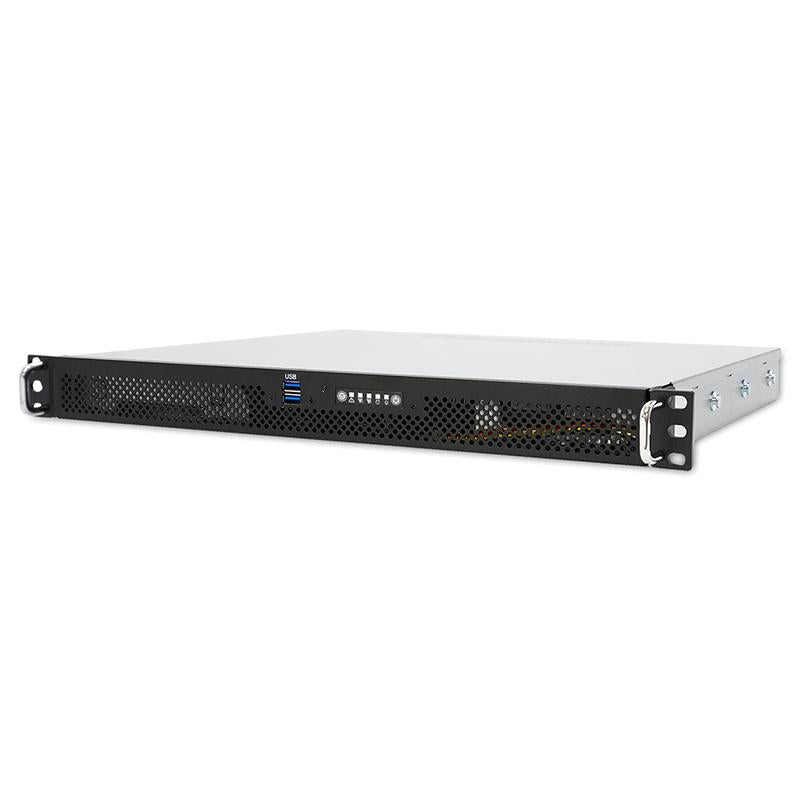

The IPC-C1E-BAS25-RH-N1 is an entry-level 1U appliance chassis with 15” depth for space-sensitive applications, such as Network & Security appliance, firewall, VPN, Telephony and military applications. Standard ATX size (9.6” x 12”) motherboard can be populated into this appliance chassis. The IPC-C1E-BAS25-RH-N1 is i a cost-effective appliance chassis that provide lower TCO (total cost of ownership) to IT professionals for higher ROI.
Dimensions (W x D x H) (with chassis ears)
• mm : 482.6 x 381 x 44.4
• inches : 19 x 15 x 1.75
Industry Standard
EIA-RS310D
Material
Heavy-duty preplated SPGC cold-rolled steel
Color
Front Panel : Black
Cooling
Standard :
• Front : 1 x 40x40x28 mm fan ( 4P)
Options :
• 2 x 40x40x28 mm fans (PCICASE SKU: IPC-SF4028-4P)
Power Supply
Standard :
• 250W single Flex ATX PSU, 80+ Gold
Expansion Slot
1 x Full Height Via Riser Card (Please See Optional Product For Details)
Front Panel
• Power on/off
• System reset
• 2 x USB 3 ports
LED Indicators
• Power
• LAN
• Drive
System Board
Up to 12”(W) x 9.6”(D) ATX compliant MB
Drive Bays
• Internal : 2x3.5" + 2 x 2.5”
Storage Temperature
0°C(32°F) ~ 50°C(122°F)
Humidity
5% ~ 95% non-condensing
Gross Weight (w/ PSU; w/o Rail)
• kgs : 7
• lbs : 15.4
Package Dimension (W x D x H)
• mm : 548 x 574 x 173
• inches : 21.6 x 22.6 x 6.8
Cubic Feet
1.9
Container Load Quantity
• 20’ : 500
• 40’ : 1025
• 40’ H : 1235
Mounting
Slider Rails: PCICASE SKU IPC-SY034-1
