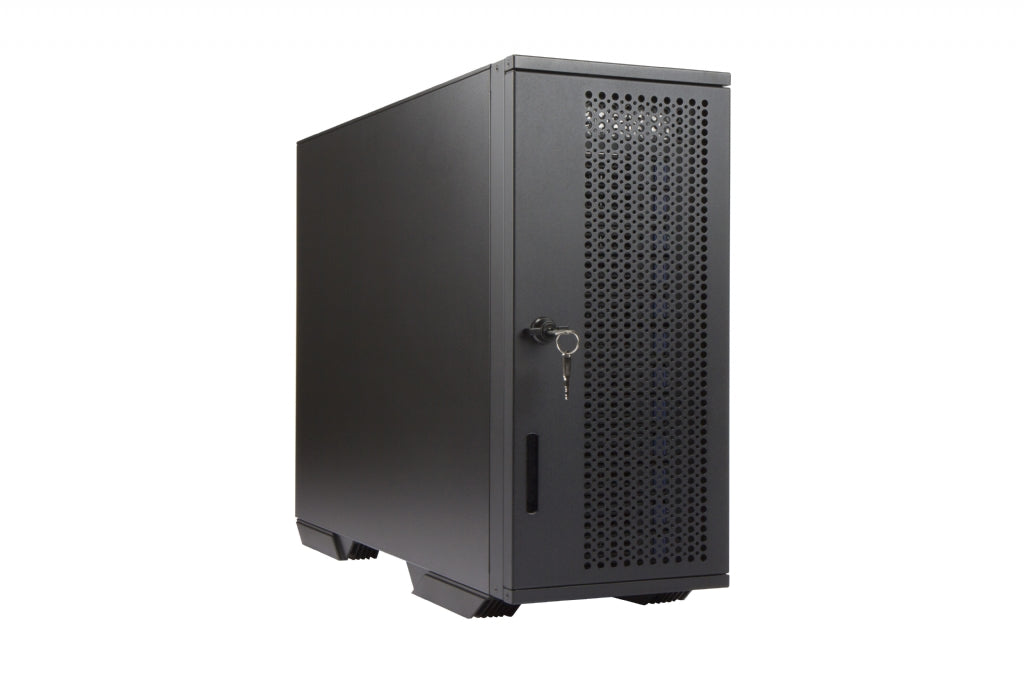

In-Win IW-PLV - PLV PEDESTAL MASS STORAGE CHASSIS/WITH IRON FRONT PANEL/2xNMB 80*80*38,5500RPM REAR FAN/3xSunon 92*92*25,4500RPM EASY-SWAY MIDDLE FAN/

M/B Form Factor

ATX(12" x 9.6") , ATX(12" x 10") , EEB(12" x 13")

Dimensions (D x W x H)
w/o Front Door

605 x 200 x 430 mm (24" x 17" x 7.8")

Drive Bay

External: Hot-Swap 3.5" x 12 or 2.5" x 12 ; 5.25” x 1
Internal: 2.5" HDD x 2 or 3.5" HDD x 1

Power Supply

Includes 2U 1+1 800W Plantinum level CPRS PSU

Supports PS2 or 2U 1+1 up to 1200W Platinum level CRPS

Indicator

Power Status, HDD, LANs, System Fail Activity LEDs

Front Control Panel

Power Switch, ID Switch, System Reset, NMI, USB 3.0 x 2

Backplane

Mini-SAS (6Gb/s Supported)；SFF 8087 x 3

Cooling Fan

Supports
．Middle: 92 x 25 mm PWM Easy-Swap Fan x 3
．Rear: 80 mm x 2 or 120 mm x 1 PWM Fan

Expansion Slot

Full Height PCI Slot x 7

Material

Material: SGCC
Thickness: 1.0 mm

Rail Kit

26" Ball-bearing slide rail

Packaging Dimensions
(D x W x H)

340 x 720 x 592 mm

Shipping Info.

Net Weight: 10.75 kg
Gross Weight: 14.3 kg

Container Info

Single Packing:
20’: 256pcs
40’: 512pcs
40’HQ: 603pcs

* The actual product is subject to change without prior notice.
In Win Development Inc. reserves the right to make final modifications.
* Above image for reference only. All hardware components are not included.
