The Server Group Ltd

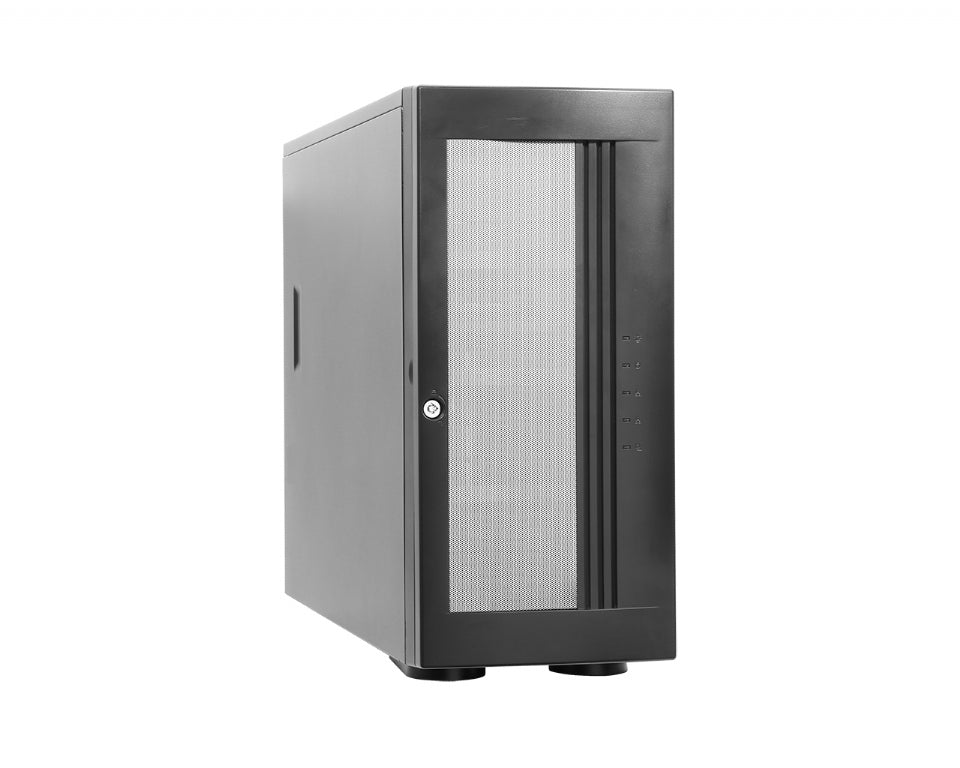

Chenbro SR105 Plus - Tower Server Case w/ 4x Hot-Swap Bays

SKU: SR10569H09*14508
£0.00
Sold out
Tax included. Shipping calculated at checkout.
Features & Benefits Supports up to 12" x 13" M/B Supports removable 4-bay 3.5" HDD Hot-swap and internal cages 3.5" HDD Hot-Swap cages with 12Gb/s Mini-SAS HD or SAS/SATA Backplane...

Out of stock - Contact our specialists on 01283 576848 for more information

Pairs well with

Chenbro SR105 Plus - Tower Server Case w/ 4x Hot-Swap Bays
£0.00

Compatible Products
1 x 5.25
Chenbro SR105 Plus - Tower Server Case w/ 4x Hot-Swap Bays
£80.40
1 x 5.25
Chenbro SR105 Plus - Tower Server Case w/ 4x Hot-Swap Bays
£146.40
1 x 5.25
Chenbro SR105 Plus - Tower Server Case w/ 4x Hot-Swap Bays
£80.40
1 x 5.25
Chenbro SR105 Plus - Tower Server Case w/ 4x Hot-Swap Bays
£80.40
View details

Features & Benefits

  • Supports up to 12" x 13" M/B
  • Supports removable 4-bay 3.5" HDD Hot-swap and internal cages
  • 3.5" HDD Hot-Swap cages with 12Gb/s Mini-SAS HD or SAS/SATA Backplane
  • Hot-swap cage with four patented tool-less 3.5" HDD trays
  • 3.5" Internal HDD cage with patented anti-vibration technologies
  • A dedicated 80mm fan for 3.5" HDD cooling
  • A optional 80mm front fan for PCI-e card cooling
  • Supports PCI-e 3.0 expansion slot opening
  • Tool-less installation for bezel, HDD cage, side cover and fans
  • Supports key lock, 3-wire intrusion switch and Kensington security slot
  • Front bezel lock to prevent unauthorized access
  • Supports Rack installation by slide rails(SR10566 Plus only)
  • Supports single PS/2 and 1+1 Redundant PSU

Technical Details
Case Form Factor Tower
Motherboard Compatibility Mini-ITX, Micro ATX, Standard ATX, Extended ATX
Drive Bays

External 5.25"

 3
External 3.5" 0
Internal 3.5" 0
Internal 2.5" 0
Hotswap 3.5" 4
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0
Hot-Swap Backplane 3.5" 4-port 12Gbps, Mini-SAS HD
Expansion Slots Full Height 7
Low Profile 0
Cooling 3 x 40mm
Power Supply Form Factor HDD Cage: 80 x 25 (1)
PCI: 80 x 25 (1)(Option)
Rear: 120 x 25 (1)
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 0
USB 3.0 2
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Black
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions 533.0 x 198.0 x 425.0 (mm)
20.98" x 7.80" x 16.73" (w/o bezel)
Weight 9kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
