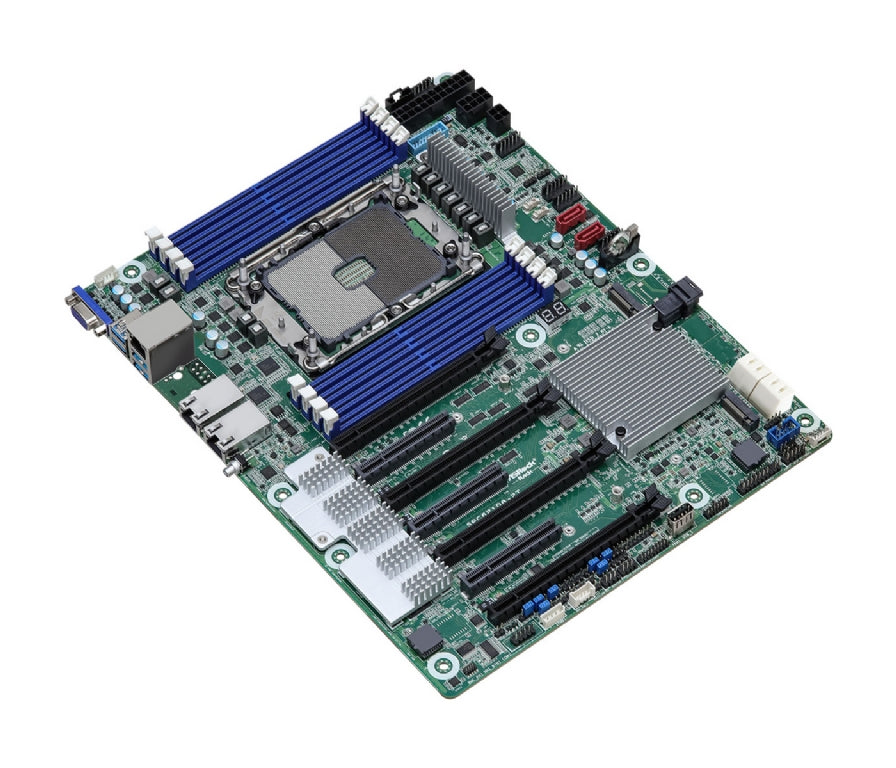

| Physical Status |
| Form Factor |
ATX |
| Dimensions |
12" x 9.6" |
| Processor System |
| CPU |
Supports 3rd Gen Intel® Xeon® Scalable processors |
| Socket |
Single Socket P+ (LGA 4189) |
| Chipset |
Intel® C621A |
| System Memory |
| Supported DIMM Quantity |
8 DIMM slots (1DPC) |
| Supported Type |
Supports DDR4 288-pin RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, Intel® Optane™ Persistent Memory 200 series |
| Max. Capacity per DIMM |
RDIMM: up to 64GB
RDIMM-3DS: up to 256GB
LRDIMM: up to 128GB
LRDIMM-3DS: up to 256GB |
| Max. DIMM Frequency |
max. 3200MHz |
| Voltage |
1.2V |
| PCIe Expansion Slots (SLOT7 close to CPU) |
| PCIe x 16 |
SLOT7: PCIe4.0 x16*
SLOT5: PCIe4.0 x16*
SLOT3: PCIe4.0 x16*
SLOT1: PCIe4.0 x16
* SLOT7/5/3 auto-switch to PCIe4.0 x8 when SLOT6/4/2 occupied |
| PCIe x 8 |
SLOT6: PCIe4.0 x8
SLOT4: PCIe4.0 x8
SLOT2: PCIe4.0 x8 |
| Other PCIe Expansion Connectors |
| M.2 slot |
1 M-key (PCIe3.0 x4 or SATA 6Gb/s), supports 22110/2280/2242 form factor
1 M-key (PCIe3.0 x1 or SATA 6Gb/s), supports 22110/2280/2242 form factor |
| SATA/SAS Storage |
| PCH Built-in Storage |
Intel® C621A (12 SATA 6Gb/s; RAID 0/1/5/10):
1 Mini-SAS HD, 4 SATA 7-pin, 2 SATA DOM, 2 M.2 |
| Ethernet |
| Additional GbE Controller |
Intel® X710-AT2: 2 RJ45 (10 GbE) |
| Server Management |
| BMC Controller |
ASPEED AST2500 |
| IPMI Dedicated GLAN |
1 x Realtek RTL8211E for dedicated management GLAN |
| Graphics |
| Controller |
ASPEED AST2500 |
| VRAM |
DDR4 16MB |
| Rear I/O |
| UID Button/LED |
1 |
| VGA Port |
1 DB15 |
| USB 3.2 Gen1 Port |
4 Type-A (USB3.2 Gen1) |
| RJ45 |
2 RJ45 (10GbE) |
| Dedicate LAN |
1 dedicated IPMI |
| Internal Connector/Headers |
| Power Connector |
1 (24-pin, ATX main power), 1 (8-pin, ATX 12V), 1 (4-pin, ATX 12V), 1 (3-pin, SATA power) |
| Auxiliary Panel Header |
1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus |
| System Panel |
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| COM Header |
1 |
| VGA header |
1 |
| Speaker Header |
1 |
| Buzzer |
1 |
| Fan Header |
5 (6-pin) |
| Thermal Sensor Header |
1 |
| TPM Header |
1 (17-pin, LPC), 1 (13-pin, SPI) |
| VROC header |
1 |
| SGPIO Header |
1 |
| SMBus header |
1 |
| PMBus header |
1 |
| IPMB Header |
1 |
| Clear CMOS |
1 (contact pads) |
| ME/SPS Recovery |
1 |
| USB 3.2 (Gen1) Header |
1 (19-pin, 2 USB3.2 Gen1) |
| USB 2.0 Header |
1 (9-pin, 2 USB2.0) |
| Type A USB 2.0 Port |
1 (Type-A, 1 USB2.0) |
| NMI Header |
1 |
| NC-SI |
1 |
| LED Indicators |
| Standby PWR LED 5vsb |
1 |
| 80 Debug Port LED |
1 |
| Fan Fail LED |
5 |
| System BIOS |
| BIOS Type |
256Mb SPI Flash ROM |
| BIOS Features |
AMI UEFI BIOS |
| Hardware Monitor |
| Temperature |
CPU, PCH, MB, Card side Temperature Sensing |
| Fan |
CPU/Rear/Front Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
CPU/Rear/Front Fan Multi-Speed Control |
| Voltage |
+12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3.3VSB, 5VSB |
| Supported OS |
| OS |
Microsoft® Windows® :
Server 2016 (64 bit)
Server 2019 (64 bit)
Linux :
Red Hat Enterprise Linux Server 7.9 (64 bit) / 8.3 (64 bit)
CentOs 7.9 (64 bit) / 8.3 (64 bit)
SUSE Enterprise Linux Server 12 SP5 (64 bit) / 15 SP2 (64 bit)
Ubuntu 20.04.1 (64 bit) / 20.10 (64 bit)
Hypervisor :
VMWare® ESXi 6.7 U3 / vSphere 6.7 U3
VMWare® ESXi 7.0.U1c / vSphere 7.0.U1c
Hyper-V Windows® Server 2016
Hyper-V Windows® Server 2019 |
| Environment |
| Temperature |
Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity |
Non operation humidity: 20% ~ 90% ( Non condensing) |
