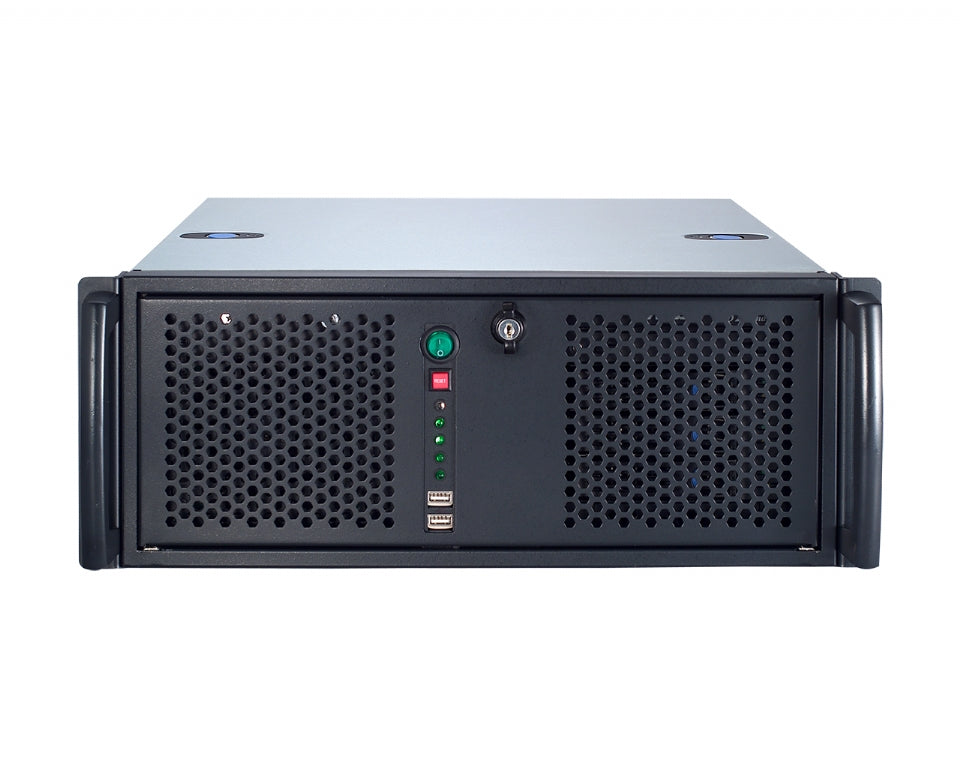

Chenbro RM42200 4U Rackmount Chassis

SKU: RM42200-F1
£0.00
Sold out
Tax included. Shipping calculated at checkout.
Features & Benefits Supports M/B up to 12” x 10.5” Optional 15-slot rear window for industry backplane Available for rackmount and stand-alone installation Rotatable 5.25” cage to keep device in...

Out of stock - Contact our specialists on 01283 576848 for more information

Pairs well with

Chenbro RM42200 4U Rackmount Chassis
£0.00

Compatible Products
Chenbro RM42200 4U Rackmount Chassis
£19.99
Chenbro RM42200 4U Rackmount Chassis
£19.99
Chenbro RM42200 4U Rackmount Chassis
£19.99
Chenbro RM42200 4U Rackmount Chassis
£19.99
View details

Features & Benefits

  • Supports M/B up to 12” x 10.5”
  • Optional 15-slot rear window for industry backplane
  • Available for rackmount and stand-alone installation
  • Rotatable 5.25” cage to keep device in horizontal position
  • Dedicated front 120mm fan for add-on card cooling
  • Card retainer to hold low profile and full height add-on cards
  • User friendly design on front key lock and lifting handle (stand-alone)
  • Supports PS/2 single or mini-redundant PSU

Specifications

Technical Details
Case Form Factor 4U Rackmount
Motherboard Compatibility Mini-ITX, Micro ATX, Standard ATX (12" x 10.5")
Drive Bays

External 5.25"

 3
External 3.5" 2
Internal 3.5" 3
Internal 2.5" 0
Hotswap 3.5" 0
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0
Hot-Swap Backplane Not Applicable
Expansion Slots Full Height 7
Low Profile 0
Cooling 1x Front Mounted 120mm PWM Included
2x Rear Mounted 80mm Optional
Power Supply Form Factor Standard ATX or 4U Mini Redundant
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 2
USB 3.0 0
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Silver
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions 522 x 430 x 176 (mm), 20.5” x 16.9” x 6.9”
Weight 13.4kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
