The Server Group Ltd

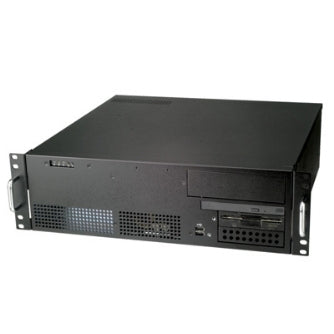

AIC 3U Short Chassis 1 x 5.25" External + 2 x 3.5" External + 2 x 3.5" Internal 1 x Slim Optical.

SKU: RMC-3A
£236.40
Sold out
Tax included. Shipping calculated at checkout.
Specifications Applications Internet Server (Web / Mail) Telephony / Telecom / VoIP Network / Security Appliance Military Application Product Details Model C3A (RMC-3A-2) Order Information IPC-C3A-BH Technical Details Colour Black...

Out of stock - Contact our specialists on 01283 576848 for more information

Pairs well with

AIC 3U Short Chassis 1 x 5.25
£236.40

Compatible Products
AIC 3U Short Chassis 1 x 5.25" External + 2 x 3.5" External + 2 x 3.5" Internal 1 x Slim Optical.
£19.99
AIC 3U Short Chassis 1 x 5.25" External + 2 x 3.5" External + 2 x 3.5" Internal 1 x Slim Optical.
£19.99
AIC 3U Short Chassis 1 x 5.25" External + 2 x 3.5" External + 2 x 3.5" Internal 1 x Slim Optical.
£19.99
AIC 3U Short Chassis 1 x 5.25" External + 2 x 3.5" External + 2 x 3.5" Internal 1 x Slim Optical.
£19.99
View details

Specifications

Applications
  • Internet Server (Web / Mail)
  • Telephony / Telecom / VoIP
  • Network / Security Appliance
  • Military Application
Product Details
Model C3A (RMC-3A-2)
Order Information IPC-C3A-BH
Technical Details
Colour Black
System Board Up to 12”(W) x 9.6”(D) ATX compliant motherboard
Drive Bays External 5.25" 1
External 3.5" 2
Internal 3.5" 2
Internal 2.5" 0
Hotswap 3.5" 0
Hotswap 2.5" 0
Slim Optical 1
Slim FDD 0
Materials & Finish
  • Materials: Heavy-duty preplated SPGC cold-rolled steel
  • Finish:
    Inside / Body: Zinc-plated with bright chromate
    Outside / Front: Texture-coated on front panel
Cooling
  • Middle: 2 x 60x25mm fans (optional 60x38mm upgrade)
  • Rear: 2 x 60x25mm easy-swap
Power Supply 300W ATX PFC (PIZ1011)
or
400W EPS PFC (PIZ1042-EPS)
Expansion Slots 7 x PCI slots (full height, full length)
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2
Lan 0
Serial 0
Indicators Power, LAN, and HDD LEDs
Environmental Specifications
  • Temperature: 0ºC(32ºF) ~ 50ºC(122ºF)
  • Humidity: 5%~95% non-condensing
Dimensions & Weights
Product Dimensions (WxDxH) mm: 482.6 x 431.8 x 133.35
inches: 19" x 17" x 5.25"
Packaging Dimensions (WxDxH) mm: 600 x 590 x 280
Weight (kgs)
  • Gross: 12 kgs / 26.4 lbs
Cubic Feet 3.5cuft
Package Contents
  • 1 x C3A
  • 1 x Accessory Box
Product Certifications, Standards & Safety
Industry Standard: EIA-RS310D

Please note all prices & specifications are subject to change without prior notice.

Please note all images are for illustration purposes only & DO NOT include any additional items which maybe pictured unless otherwise specified.
