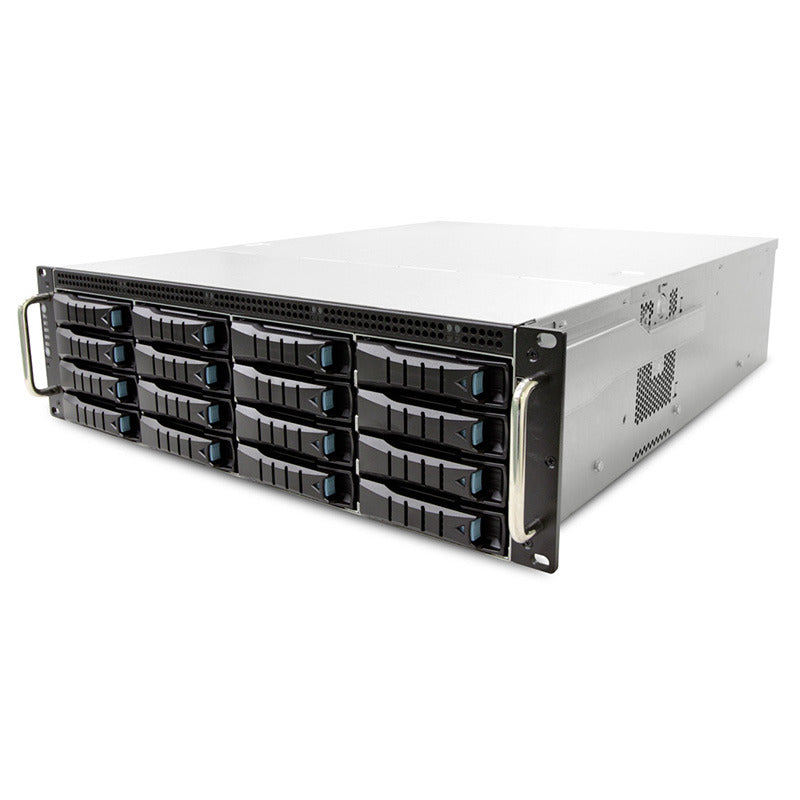

AIC 3U 12G Short Storage Server Chassis 16 x 3.5" Hot-Swap + 2 x 2.5" Rear Hot-Swap with 800W 1+1 Redundant PSU (Rails Included) * Expander On Board

SKU: RSC-3ETS
£0.00
Shipping calculated at checkout.
key features • Tool-less design supports quick installation and easy maintenance:- Tool-less Hot-Swap - 16 x 3.5”drive trays- 2 x 2.5” drive trays (Rear OS)- Tool-less top covers- Tool-less backplane-...
Pairs well with
AIC 3U 12G Short Storage Server Chassis 16 x 3.5
£0.00

View details
key features

• Tool-less design supports quick installation and easy maintenance:
- Tool-less Hot-Swap
- 16 x 3.5”drive trays
- 2 x 2.5” drive trays (Rear OS)
- Tool-less top covers
- Tool-less backplane
- Tool-less slide rails
Internal HDD 4 x 2.5” drive trays (Front)
• 12Gb/s SAS expander chip on backplane
• Specially designed hot swap and low power consumption fans minimize rotational vibration and provide superior cooling
• 3.5” drive tray comes with 4 screw holes to adapt to 2.5” drive
• Two front access USB 3.0 port
• Comes with a 80+ Platinum redundant PSU

The IPC-C3ETS-R8-EOB-12G is a T series 3U 16-bay SAS/SATA storage server chassis. With its tool-less 3.5" and 2.5" hard drive carriers, top covers and backplane, the IPC-C3ETS-R7-EOB-12G supports quick installation and easy maintenance. This tool-less design solution also features 3 x low-power consumption hot swap fans and shorter depth dimension, offering a cost-effective solution ideally suited for a broad range of applications.

Dimensions (W x D x H) (with chassis ears)
• mm : 483 x 560 x 132
• inches : 19 x 22 x 5.2

Industry Standard
EIA-RS310D

Material
Heavy-duty preplated SGCC cold-rolled steel

Color
Front Panel : Black

Cooling
Standard :
• Middle : 3 x 80x38mm PWM & low-power consumption hot swap fans

Power Supply
Standard :
• 800W 1+1 redundant PSU PMBus 1.2 80+ Platinum

Expansion Slots
7

Front Panel
• Power on/off
• System reset
• 2 x USB 3.0 port

LED Indicators
• Power
• LAN
• Drive
• Alert

System Board
12”(W) x 9.6”(D) ATX MB

Drive Bays
• External : 16 x 3.5” hot swap
• 4 x 2.5” internal and 2 x 2.5” hot swap
Choose 1 :
• 5 x 2.5” internal
• 3 x 2.5” internal and 1 x Slim DVD-ROM
• 2 x 2.5” internal, 2 x 2.5” hot swap and 1 x Slim DVD-ROM

Backplane
1 x 16-port 12Gb SAS backplane with 28-PHY expander chip and 3 SFF-8643 connectors

Storage Temperature
0°C(32°F) ~ 50°C(122°F)

Humidity
5% ~ 95% non-condensing

Gross Weight (w/ PSU & Rail)
• kgs : 26.2
• lbs : 57.8

Package Dimension (W x D x H)
• mm : 590 x 885 x 335
• inches : 23.2 x 34.8 x 13.2

Cubic Feet
6.03

Container Load Quantity
• 20’ : 158
• 40’ : 323
• 40’ H : 390

Mounting
Standard : 28” tool-less slide rail
