Key Features
- High-density design for space saving (cost saving)
- 4 drawers to load up to 32 hot swap drives
- Tool-less design supports quick installation and easy maintenance:
- Tool-less 3.5” & 2.5” drive trays
- Tool-less rear top cover
- Anti-vibration rubbers on drive trays and fans
- Silicon gaskets to absorb vibration from sides of drives
- Easy swap system fans designed to minimize rotational vibration while providing superior cooling
Features And Benefits

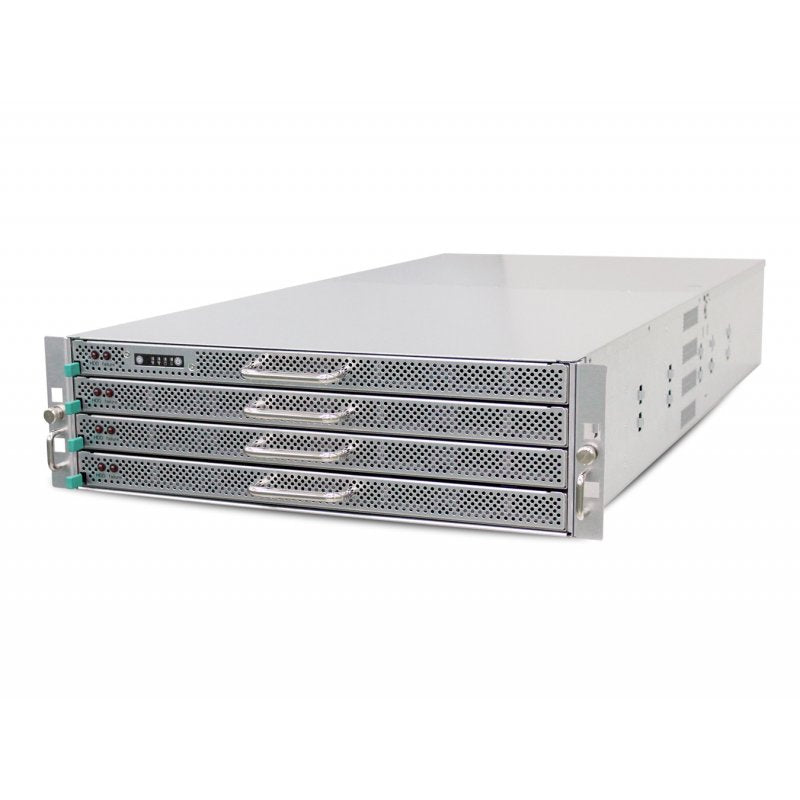

As the manager or operator of a data center, it is important to maintain tight control over costs while providing the maximum uptime for your customers. For that reason, AIC has developed the IPC-C3M-BAR1200, a 3U 32-Bay storage server chassis. It enables data center services companies that run object storage applications a more efficient and economical solution. If you run Hadoop or Ceph, the IPC-C3M-BAR1200 is designed to provide dynamic amounts of computing power and abundant storage space at the same time to meet shifting application requirements. The tool-less design makes installation and maintenance quick and easy. Rubbers on the drive tray and silicon gaskets protect against vibrations. Its high-density, space-saving design saves you money. Its drives can be hot swapped at a moment’s notice, resulting in less downtime. Even though IPC-C3M-BAR1200 was initially designed for data centers, the aforementioned features make it a good solution for media production as well.
Dimensions (W x D x H) (with chassis ears)
• mm : 483 x 910 x 132
• inches : 19 x 35.8 x 5.2
Industry Standard
EIA-RS310D
Material
Heavy-duty preplated SPGC cold-rolled steel
Color
Not coated
Cooling
Middle : 3 x 80x38mm PWM & low-power consumption hot swap fans
Power Supply
1200W 1+1 redundant 80+ Gold
Expansion Slots
7 x Low Profile
Front Panel
• Power on/off
• System reset
LED Indicators
• Power
• LAN
• Drive
System Board
12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB
Drive Bays
• Internal : 32 x 3.5” hot swap
Choose 1 :
• Internal : 2 x 2.5”
• External : 2 x 2.5” hot swap
Backplanes
8 x 4-port 12Gb SAS backplanes with single SFF-8643 connector on each
Storage Temperature
0°C(32°F) ~ 50°C(122°F)
Humidity
5% ~ 95% non-condensing
Gross Weight (w/ PSU & Rail)
• kgs : 47
• lbs : 103.6
Package Dimension (W x D x H)
• mm : 1170 x 600 x 358
• inches : 46 x 23.6 x 14
Cubic Feet
8.8
Container Load Quantity
• 20’ : 108
• 40’ : 240
• 40’ H : 280
Mounting
Standard : 25” tool-less slide rail
* All specifications are subject to change without notice.
