Description
Key Features
• Ruggedized design (Internal board to board connection)
• Tool-less design
• Hot-swap expander modules, drives, PSU, fans
• Short-depth
• Clear front panel LED indicators
• Optimized thermal solution
• BMC onboard
Features & Benefits

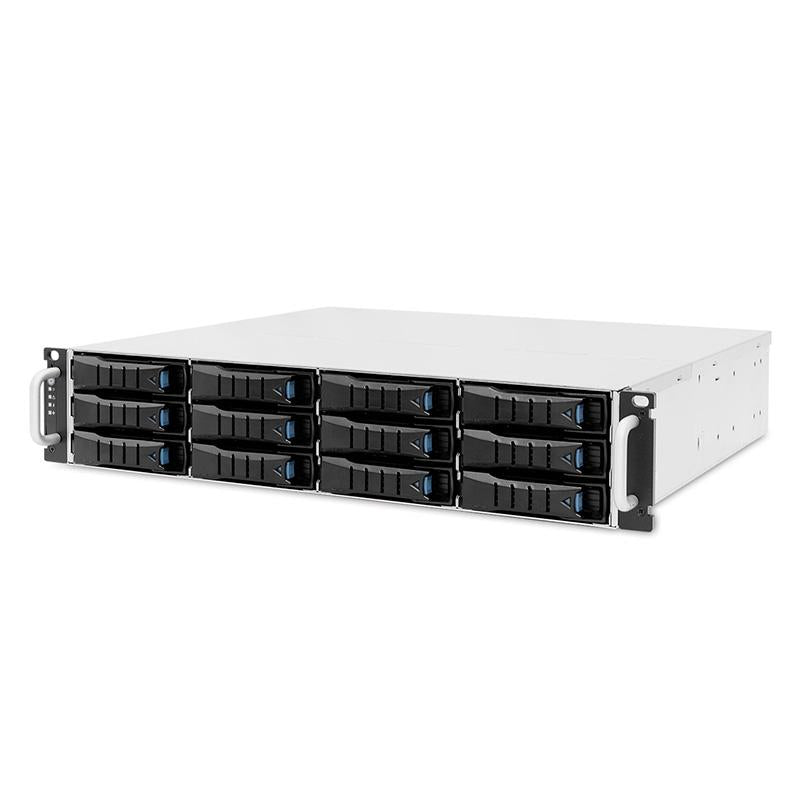

IPC-S2ET is an innovative 2U12 JBOD that integrates 3.5" SAS(12G,dual)/SATA (6G, single) disk drive, Broadcom SAS35X-Series expander chip, and board-to-board connection design into a compact and stable system with exceeding productivity.
Key Features
• Ruggedized design (Internal board to board connection)
• Tool-less design
• Hot-swap expander modules, drives, PSU, fans
• Short-depth
• Clear front panel LED indicators
• Optimized thermal solution
• BMC onboard
| General |
| Number of Expander: •Single |
| Expander Chip: • LSI SAS35X40 |
| Host/Expansion Interface: • 4 x Mini SAS HD (SFF-8644) per expander module |
| Drives Supported |
| Drive Interface: • 12Gb & 6Gb SAS if using dual expanders • 12Gb & 6Gb SAS/SATA if using single expander |
| Form Factor: • 3.5” |
| Administration / Management |
| Admin/Firmware Upgrade: • In-band & Serial port interface • IEM port |
| LED Indicators, Audible Alarm: Yes |
| Hot-swap & Redundancy |
| Drive Bays: • 12 |
| Cooling: • 2 x 60x56mm hot-swap fans |
| Power Supply: • 550W 1+1 hot-swap redundant 80+ Platinum |
| Power Entry: Dual AC Inlet |
| Expander Modules: Single expanders |
| Electrical & Environment |
| Universal A/C Input: • 100~127V, 50/60Hz, 7.0A • 200~240V, 50/60Hz, 3.5A |
| Operating Environment: • Temperature: 0ºC to 35ºC • Relative humidity: 20% to 80% |
| Non-operating Environment: • Operating altitude condition : 0 ~ 10K ft • Storage temperature: -20° ~ 60°C • System relative humidity : 10% - 90% |
| Physical Specification |
| Dimensions (W x D x H): • mm: 438 x 385.45 x 88.2 • inches: 17.2 x 15.2 x 3.5 |
| Gross Weight (w/ PSU, Rail; w/o Pallet, Disks): • kgs: 20.98 • lbs: 46.25 |
| Packaging Dimension (W x D x H): • mm: 605 x 680 x 318 • inches: 23.8 x 26.8 x 12.5 |
| Mounting (Standard): • Adjustable plate (support rack post: 400-500mm) • 20” tool-less rail(Optional) |
