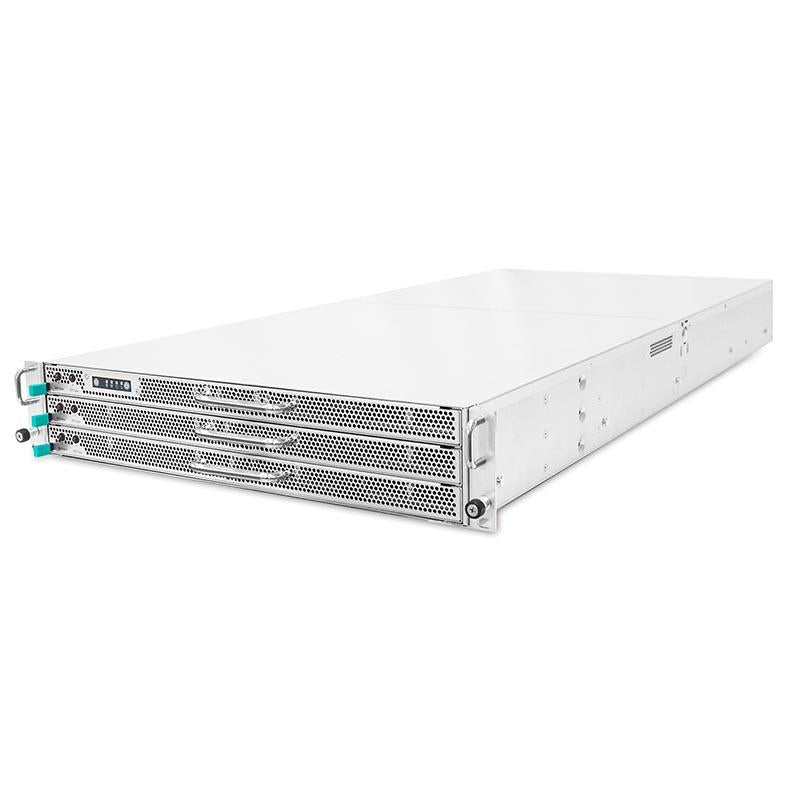

2U 12G High Density Storage Chassis 24 x 3.5" Tool-less tray with an 800W Redundant PSU (Rails Included)

SKU: RSC-C2MS-BAR800-12G-24
Regular price £2,680.80
Tax included. Shipping calculated at checkout.
Key Features• Tool-less design, support quick installation and maintenance (HDD )• High-density storage server solution in 2U• 3 drawers to load up to 24 hot swap drives• Tool-less 3.5” &...
Pairs well with

2U 12G High Density Storage Chassis 24 x 3.5
£2,680.80

Compatible Products

Key Features
• Tool-less design, support quick installation and maintenance (HDD )
• High-density storage server solution in 2U
• 3 drawers to load up to 24 hot swap drives
• Tool-less 3.5” & 2.5” drive trays
• Silicon gaskets to absorb vibration from the sides of the drives

RSC-2MS

Features & Benefits

As the manager or operator of a data center, it is important to maintain tight control over costs while providing the maximum uptime for your customers. For that reason, AIC has developed the RSC-2MS, a 2U 24-Bay storage server chassis. It enables data center services companies that run object storage applications a more efficient and economical solution. The tool-less design makes installation and maintenance quick and easy. Rubbers on the drive tray and silicon gaskets protect against vibrations. Its high-density, space-saving design saves you money. Its drives can be hot swapped at a moment’s notice, resulting in less downtime. Even though RSC-2MS was initially designed for data centers, the aforementioned features make it a good solution for media production as well. (Power supply is included. Motherboard is not included.)

Key Features
• Tool-less design, support quick installation and maintenance (HDD )
• High-density storage server solution in 2U
• 3 drawers to load up to 24 hot swap drives
• Tool-less 3.5” & 2.5” drive trays
• Silicon gaskets to absorb vibration from the sides of the drives

Dimensions (W x D x H)
• mm : 438 x 838 x 88
• inches : 17.2 x 33 x 3.46
Industry Standard
EIA-RS310D
Material
SGCC
Color
No coating
Cooling
4 x 60x38mm PWM fans
Power Supply
800W 1+1 redundant PSU PMBus 1.2 80+ Platinum
Expansion Slots
7 low profile
Front Panel
System power switch and system reset switch
LED Indicators
• System Power
• HDD
• LAN 1
• LAN 2
System Board
Up to 12” x 10.5” ATX M/B
Drive Bays
• Internal : 24 x 3.5” hot swap
• Internal : 2 x 2.5” hot swap (7mm SSD)
Backplanes
6 x 4-port SATA/SAS backplanes with SFF-8643 connectors
Storage Temperature
0°C(32°F) ~ 50°C(122°F)
Humidity
5% ~ 95% non-condensing
Gross Weight (w/ PSU & Rail)
• kgs: 31
• lbs: 68.35
Package Dimension (W x D x H)
• mm: 605 x 1140 x 318
• inches: 23.8 x 35 x 12.5
Cubic Feet
7.9
Container Load Quantity
20’ : 126
40’ : 266
40’ H : 304
Mounting
Standard : 33'' slide rail
