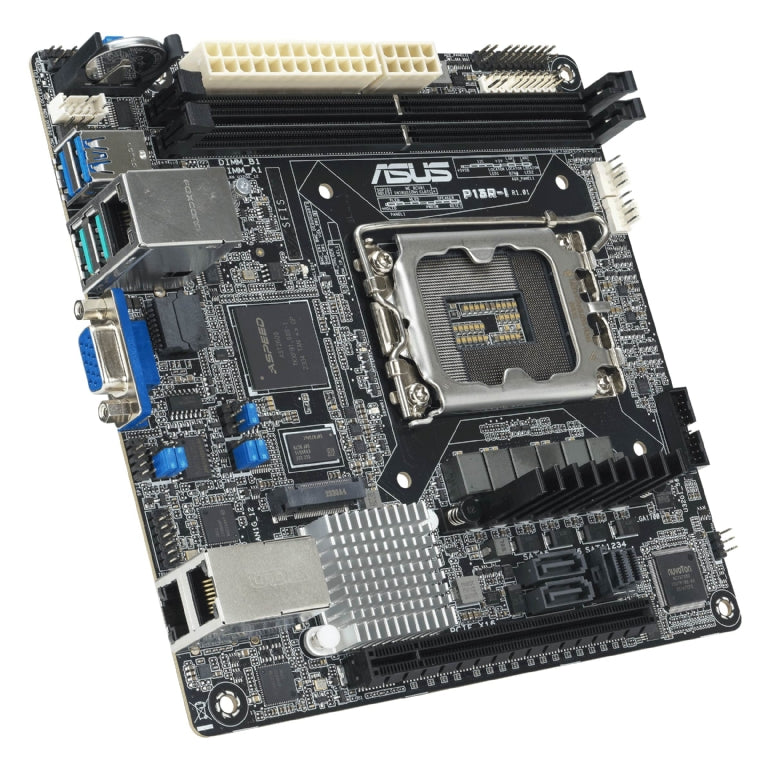

ASUS P13R-I Server Motherboard. Xeon E-2400 Support. Dual Gigabit LAN Onboard. VGA Video Onboard. Integrated IPMI Remote KVM. Includes ASMB11 Module

SKU: 90SB0CR0-M0UAY1
£280.03
Tax included. Shipping calculated at checkout.
Processor / System Bus 1 x Socket LGA1700Intel® Pentium® ProcessorsIntel® Xeon® E processors Core Logic Intel® C262 Chipset Memory Total Slots :2 (2 Channels)Capacity :Maximum up to 64GBMemory Type :DDR5...

In stock & ready to ship

Pairs well with

ASUS P13R-I Server Motherboard. Xeon E-2400 Support. Dual Gigabit LAN Onboard. VGA Video Onboard. Integrated IPMI Remote KVM. Includes ASMB11 Module
£280.03

Compatible Products
ASUS P13R-I Server Motherboard. Xeon E-2400 Support. Dual Gigabit LAN Onboard. VGA Video Onboard. Integrated IPMI Remote KVM. Includes ASMB11 Module
£19.99
ASUS P13R-I Server Motherboard. Xeon E-2400 Support. Dual Gigabit LAN Onboard. VGA Video Onboard. Integrated IPMI Remote KVM. Includes ASMB11 Module
£19.99
ASUS P13R-I Server Motherboard. Xeon E-2400 Support. Dual Gigabit LAN Onboard. VGA Video Onboard. Integrated IPMI Remote KVM. Includes ASMB11 Module
£19.99
ASUS P13R-I Server Motherboard. Xeon E-2400 Support. Dual Gigabit LAN Onboard. VGA Video Onboard. Integrated IPMI Remote KVM. Includes ASMB11 Module
£19.99
View details

  • Processor / System Bus

    1 x Socket LGA1700
    Intel® Pentium® Processors
    Intel® Xeon® E processors

  • Core Logic

    Intel® C262 Chipset

  • Memory

    Total Slots :
    2 (2 Channels)
    Capacity :
    Maximum up to 64GB
    Memory Type :
    DDR5 4800 ECC UDIMM
    Memory Size :
    64GB
    * Refer to support page for more information

  • Expansion Slots

    Total Slot : 1
    Slot Location 1 : 1 x PCI-E x16 (x16 Gen5 Link)

  • Form Factor

    Mini ITX (6.7” x 6.7”, 170mm x 170mm)

  • ASUS Features

    FAN speed control
    Rack Ready (Rack and Pedestal dual use)
    ASUS Control Cente

  • Storage

    Storage Controller :
    6 x SATA 6Gb/s ports by 4 Mini-SAS HD connectors
    1 x M.2 connector(2280,support NVMe PCIe x4 link)

  • Networking

    2 x Intel® I210-AT2 + 1 x Mgmt LAN

  • Graphic

    Aspeed AST2600 with 64MB VRAM (VGA from BMC)

  • On Board I/O

    1 x VGA Header (VGA from BMC)
    1 x TPM header
    1 x COM port
    2 x Fan Header , 4pin
    1 x Chassis Intruder
    2 x Front LAN LED
    1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
    1 x M.2 Connector
    2 x USB 3.2 Gen2 (rear)
    2 x USB 3.2 Gen1 (rear)

  • Back I/O Ports

    2 x USB 3.2 Gen2
    2 x USB 3.2 Gen1
    1 x VGA port (VGA from BMC)
    2 x 1 GbE LAN + 1 x Mgmt LAN

  • Management Solution

    On-Board ASMB11-iKVM for KVM-over-IP

  • Weight

    Gift Box (1-in-1)
    Net Weight : 0.52 KG
    Gross Weight : 1.1 KG
    Bulk Pack (10-in-1)
    Net Weight : 3.66 KG
    Gross Weight : 5.8 KG

  • Environment

    Operation temperature: 10℃ ~ 50℃*
    Non operation temperature: -40℃ ~ 70℃
    Non operation humidity: 20% ~ 90% ( Non condensing)
    *The boundary condition above is based on 8.3W of PCH TDP spec . If the LFM estimate is higher than acceptable value from customer, ASUS can provide boundary condition with raw power for reference.

  • Accessories

    Gift Box (1-in-1)
    1 x I/O shield
    1 x Plate for LGA1700
    Bulk Pack (10-in-1)
    1 x I/O shield
    1 x Plate for LGA1700

  • Monitoring

    CPU Temperature
    Fan RPM
