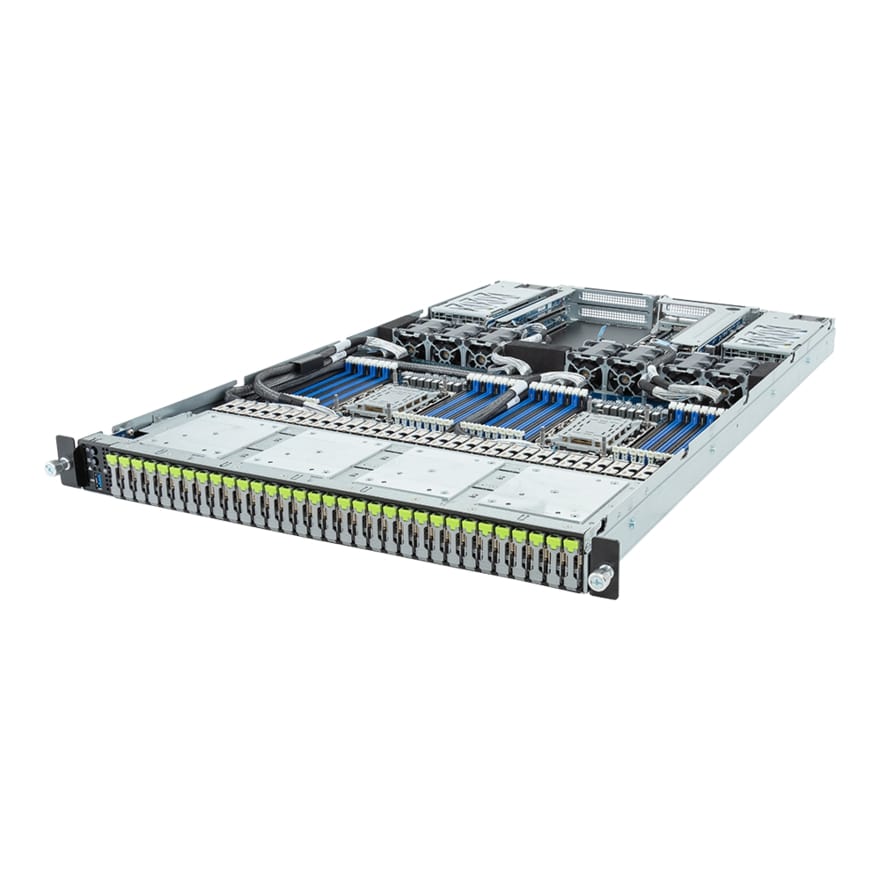

Gigabyte S183-SH0 1U Rackmount Dual Socket 4th Gen Intel Xeon Scalable Server - 32x E1.S Hot-Swap Bays - Redundant PSU

1U
438 x 43.5 x 730

MSH3-ES0

4th Generation Intel^® Xeon^® Scalable Processors
Intel^® Xeon^® CPU Max Series
Intel^® Xeon^® Platinum Processor, Intel^® Xeon^® Gold Processor, Intel^® Xeon^® Silver Processor
Dual processor, CPU TDP up to 350W

NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable

2 x LGA 4677
Socket E

Intel^® C741 Chipset

32 x DIMM slots
DDR5 memory supported only
8-Channel memory per processor architecture
RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported
Memory speed: Up to 4800 MHz (1DPC), 4400 MHz (2DPC)

Rear side:
2 x 1Gb/s LAN ports (1 x Intel^® I350-AM2)
Support NCSI function

1 x 10/100/1000 management LAN

Integrated in Aspeed^® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Front side:
32 x 9.5mm E1.S NVMe hot-swappable bays
- (16 x from CPU_0, 16 x from CPU_1)

N/A

Optional compatible RAID Cards:

NVMe/NVMe-oF RAID Cards with SupremeRAID™ by Graid Technology
RAID Card models: SR-1000-FD32, SR-1010-FD32
Support RAID 0/1/5/6/10

Riser Card CRSD013:
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1

Riser Card CRSD022:
- 1 x PCIe x16 (Gen5 x16 or x8) FHHL slot, from CPU_0
- 1 x PCIe x16 (Gen5 x0 or x8) FHHL slot, from CPU_0

1 x M.2 slot (CMTP0C0):
- M-key
- PCIe Gen3 x4 or SATA 3.0, from PCH
- Supports 2280/22110 cards

1 x M.2 slot (CMTP0C1):
- M-key
- PCIe Gen3 x4 or SATA 3.0, from PCH
- Supports 2280/22110 cards

2 x M.2 slots
1 x TPM header
1 x VROC connector
2 x SATA connectors (for SATA DOM)

1 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x HDD activity LED
1 x System status LED

2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID LED

N/A

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

1+1 2000W (240V) 80 PLUS Titanium redundant power supplies

AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 10A, 50-60Hz

DC Input:
- 240Vdc/ 10A

DC Output:
- Max 1000W/ 100-127V~
+ 12.2V/ 82A
+ 12Vsb/ 3A
- Max 1800W/ 200-207V~
+ 12.2V/ 147.5A
+ 12Vsb/ 3A
- Max 1900W/ 208-219V~
+ 12.2V/ 155.7A
+ 12Vsb/ 3A
- Max 2000W/ 220-240V~ or 240Vdc Input
+ 12.2V/ 164A
+ 12Vsb/ 3A

Aspeed^® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

• Dashboard
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• Advanced power capping
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

Please refer to OS compatibility table in support page

7 x 40x40x56mm (32,000rpm)

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

985 x 588 x 250 mm

1 x S183-SH0
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
6 x Carrier clips
1 x 2-Section Rail kit

- Barebone package: 6NS183SH0DR000AAJ1*
- Motherboard: 9MSH3ES0UR-000
- 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-4Z3200-S7R
- M.2 heatsink: 12SP2-11000E-00R
- Front panel board - CFPD040: 9CFPD040NR-00
- Fan module: 25ST2-40562H-A0R
- E1.S bridge card - CBG060: 9CBG60NR-00
- E1.S bridge card - CBG061: 9CBG61NR-00
- M.2 card - CMTP0C0: 9CMTP0C0NR-00
- M.2 card - CMTP0C1: 9CMTP0C1NR-00
- Riser card - CRSD013: 9CRSD013NR-00
- Riser card - CRSD022: 9CRSD022NR-00
- G-SC Module - CDCR112: 9CDCR112NR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-22000K-L0S

Optional parts:

- RAID card (SR-1000-FD32): 25FC1-SRBUN0-AFS
- RAID card (SR-1010-FD32): 25FC1-SRBUN4-AFR
- 3-Section Rail kit (CMA supported): 25HB2-AA6105-K0R
- Cable Management Arm: 25HBZ-R18100-K0R
