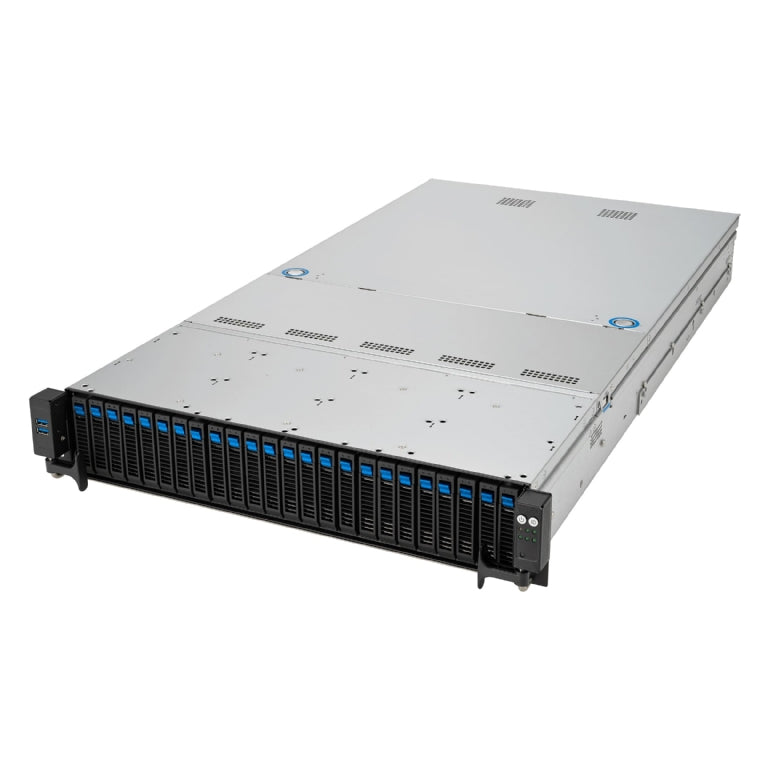

ASUS RS520A-E12-RS24U 2U Rackmount Single 9004 Series AMD EPYC Server - 24x Hot-Swap Bays - Redundant PSU

SKU: 90SF02G1-M000D0
£2,153.07
Sold out
Tax included. Shipping calculated at checkout.
Processor / System Bus 1 x Socket SP5 (LGA 6096)AMD EPYC™ 9004 Series Processors (up to 400W) Memory 24 x DIMM slotsDDR5 4800/4400 RDIMM/ 3DS RDIMMMaximum 6144GB *2DPC support depends...

Out of stock - Contact our specialists on 01283 576848 for more information

Pairs well with

ASUS RS520A-E12-RS24U 2U Rackmount Single 9004 Series AMD EPYC Server - 24x Hot-Swap Bays - Redundant PSU
£2,153.07

Compatible Products
ASUS RS520A-E12-RS24U 2U Rackmount Single 9004 Series AMD EPYC Server - 24x Hot-Swap Bays - Redundant PSU
£19.99
ASUS RS520A-E12-RS24U 2U Rackmount Single 9004 Series AMD EPYC Server - 24x Hot-Swap Bays - Redundant PSU
£19.99
ASUS RS520A-E12-RS24U 2U Rackmount Single 9004 Series AMD EPYC Server - 24x Hot-Swap Bays - Redundant PSU
£19.99
ASUS RS520A-E12-RS24U 2U Rackmount Single 9004 Series AMD EPYC Server - 24x Hot-Swap Bays - Redundant PSU
£19.99
View details

  • Processor / System Bus

    1 x Socket SP5 (LGA 6096)
    AMD EPYC™ 9004 Series Processors (up to 400W)

  • Memory

    24 x DIMM slots
    DDR5 4800/4400 RDIMM/ 3DS RDIMM
    Maximum 6144GB
    *2DPC support depends on AMD schedule
    * Refer to support page for more information

  • Expansion Slots

    Up to 5 PCIe Gen5 slots + 1 OCP3.0
    2 x PCIe Gen5 x16, FHFL or 4 x PCIe Gen5 x8, FHFL
    1 x PCIe Gen5 x8, LP
    1 x OCP Mezz. 3.0 Slot ( (PCIe Gen5 x16)

  • Storage

    Storage Controller :
    CPU Integrated
    Optional kits Controller :
    Broadcom Mega RAID 9560-16i
    ASUS PIKE II 3008-8i 8-port SAS 12G HBA card

  • Drive Bays

    Front bays:
    24 x 2.5” hot-swap drive bays
    Support up to 24 NVMe or 16x NVMe + 8 SAS/SATA

    Rear bays:
    2 x 2.5” SATA hot-swap drive bays

    *SAS support only from optional SAS HBA/RAID
    card

    2 x M.2 connectors

  • Networking

    1 x Dual Port Intel I350-AM2 GbE LAN Controller
    1 x Management Port

  • Graphic

    Up to 4 single-slot or 2 double-slot GPU cards
    *24 NVMe can‘t support GPU

  • Front I/O Ports

    2 x USB 3.2 Gen1 ports
    1 x VGA port

  • Rear I/O Ports

    2 x USB 3.2 Gen1 ports
    1 x VGA port
    1 x Management port
    2 x 1GbE LAN ports

  • Switch/LED

    Front:
    1 x Power Button/LED
    1 x Reset Switch
    1 x Location Button/LED
    1 x HDD Access LED
    1 x Message LED
    LAN 1-2 LED
    Rear:
    1 x Port80 LED (Q-Code)
    1 x Power Button/LED
    1 x Location Button/LED
    1 x Message LED

  • OS Support

    Please find the latest OS support from https://servers.asus.com/support/os

  • Management Solution

    ASUS Control Center
    ASUS ASMB11-iKVM (on-board)

  • Regulatory Compliance

    CB, CE, RCM, FCC(Class A)

  • Dimensions

    840mm x 449mm x 88.1mm (2U)
    33.07” x 17.68” x 3.47

  • Form Factor

    2U

  • Weight

    (approximate)
    Net Weight: 19.14 kg
    Gross Weight: 26.63 kg

  • Power Supply

    1+1 Redundant 1600W 80 PLUS Titanium
    Power Supply
    1+1 Redundant 1600W/1200W 80 PLUS Platinum
    Power Supply

  • Environment

    Operating temperature: 10°C – 35°C
    Non operating temperature: -40°C – 70°C
    Non operating humidity: 20% – 90% (Non condensing)

    Note
    Operating Temperature based on configurations

  • Optional Items

    Rail Kit:
    Tool-less Friction Rail Kit
    1.5U Height Full Extension Ball bearing Type Rail Kit
    *Please consult sales if cable arm needed.
    2U Front Bezel
