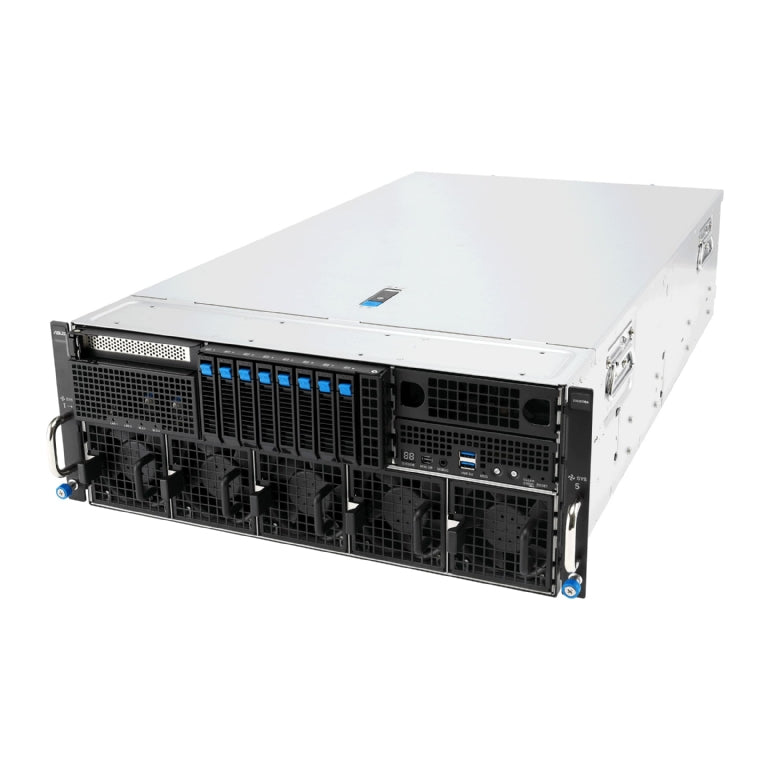

ASUS ESC8000-E12 4U Rackmount Dual Intel Xeon 6 Scalable GPU Server - 8x Hot-Swap Bays - 8x GPU Support - Redundant PSU

SKU: 90SF0412-M001S0
£9,859.41
Sold out
Tax included. Shipping calculated at checkout.
Processor / System Bus 2 x LGA 4710 socketsIntel® Xeon® 6 processors*Up to 350 TDP Memory Total Slots:32 (8 channel per CPU, 16 DIMM per CPU)Capacity:Maximum up to 4TBMemory Type:DDR5...

Out of stock - Contact our specialists on 01283 576848 for more information

Pairs well with

ASUS ESC8000-E12 4U Rackmount Dual Intel Xeon 6 Scalable GPU Server - 8x Hot-Swap Bays - 8x GPU Support - Redundant PSU
£9,859.41

Compatible Products
ASUS ESC8000-E12 4U Rackmount Dual Intel Xeon 6 Scalable GPU Server - 8x Hot-Swap Bays - 8x GPU Support - Redundant PSU
£19.99
ASUS ESC8000-E12 4U Rackmount Dual Intel Xeon 6 Scalable GPU Server - 8x Hot-Swap Bays - 8x GPU Support - Redundant PSU
£19.99
ASUS ESC8000-E12 4U Rackmount Dual Intel Xeon 6 Scalable GPU Server - 8x Hot-Swap Bays - 8x GPU Support - Redundant PSU
£19.99
ASUS ESC8000-E12 4U Rackmount Dual Intel Xeon 6 Scalable GPU Server - 8x Hot-Swap Bays - 8x GPU Support - Redundant PSU
£19.99
View details

  • Processor / System Bus

    2 x LGA 4710 sockets
    Intel® Xeon® 6 processors
    *Up to 350 TDP

  • Memory

    Total Slots:
    32 (8 channel per CPU, 16 DIMM per CPU)
    Capacity:
    Maximum up to 4TB
    Memory Type:
    DDR5 6400 (1DPC) / 5200 (2DPC) RDIMM
    Memory Size:
    128GB, 96GB, 64GB, 32GB RDIMM
    * Refer to ASUS server AVL for the latest update

  • Expansion Slots

    Up to 11 slots

    Rear:
    8 x PCIe x16 for dual-slot GPU cards (Gen5 x16 link, FHFL)
    1 x PCIe x16 for NIC/BlueField-3 card (Gen5 x16 link, FHHL)
    1 x PCIe x16 for NIC card (Gen5 x8 link, FHHL)

    Front:
    1 x PCIe x16 for HBA/RAID card (Gen5 x8 link, FHHL)

  • Storage

    8 x 2.5" Front Hot-swap Storage Bays
    *NVMe support requires an optional HBA/RAID card, up to 6 x 2.5" U.2 NVMe

  • Networking

    1 x Management Port

  • Multi-GPU Support

    Please find the latest GPU support from
    https://servers.asus.com/support/gpu

  • Front I/O Ports

    1 xMini DisplayPort
    2 xUSB 5Gbps ports
    1 x Debug port

  • Rear I/O Ports

    1 x USB 5Gbps port
    1 x RJ-45 management LAN port

  • Switch/LED

    Front :
    1 x Power switch/LED
    1 x Location switch/LED
    1 x Message LED
    1 x Clear CMOS switch
    1 x Reset Switch
    2 x M.2 LEDs
    2 x LAN LEDs*
    1 x Q-code/Port 80 LED
    Rear :
    1 x Power switch/LED
    1 x Location switch/LED
    1 x Message LED
    *ESC8000-E12P only

  • OS Support

    Please find the latest OS support from
    https://servers.asus.com/support/os

  • Management Solution

    ASUS Control Center Enterprise (in-band)
    ASMB12-iKVM for (out-of-band/BMC AST2600)

  • Regulatory Compliance

    BSMI, CB, CE, FCC(Class A), RCM

  • Dimensions

    800mm x 439.5mm x 175mm
    31.5” x 17.3” x 6.9”

  • Form Factor

    4U

  • Weight

    Net Weight: 42 Kg
    Gross Weight: 44.23 Kg

  • Power Supply

    3+1 redundant 3200W 80 PLUS Titanium power supply
    20-240 Vac, 16A (x4) 50/60Hz

  • Environment

    Operating temperature: 10°C ~ 35°C
    Non-operating temperature: -40°C ~ 60°C
    Non-operating humidity: 20% ~ 95% (Non-condensing)
