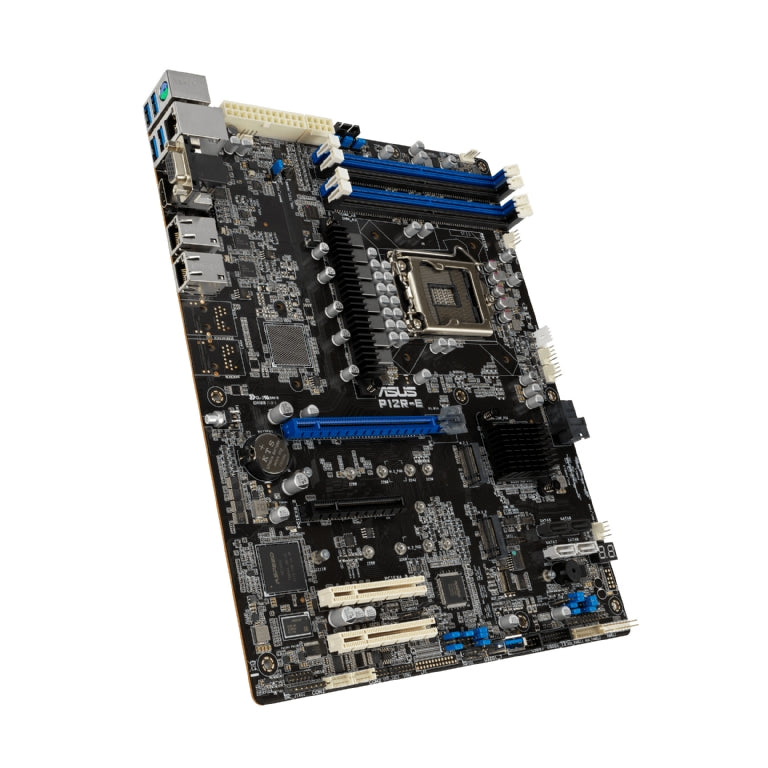

ASUS P12R-E Server Motherboard. Xeon E-2300 Support. Dual Gigabit LAN Onboard. VGA Video Onboard. Integrated IPMI Remote KVM. Includes ASMB10 Module

SKU: 90SB0A90-M1UAY0
£0.00
Sold out
Shipping calculated at checkout.
Processor / System Bus 1 x Socket LGA1200 Intel® Pentium® Processors Intel® Xeon® E processors Core Logic Intel® C256 Chipset Memory Total Slots :4 (2-channel)Capacity :Maximum up to 128GB UDIMMMemory...

Out of stock - Contact our specialists on 01283 576848 for more information

Pairs well with
ASUS P12R-E Server Motherboard. Xeon E-2300 Support. Dual Gigabit LAN Onboard. VGA Video Onboard. Integrated IPMI Remote KVM. Includes ASMB10 Module
£0.00

View details

  • Processor / System Bus

    1 x Socket LGA1200
    Intel® Pentium® Processors
    Intel® Xeon® E processors

  • Core Logic

    Intel® C256 Chipset

  • Memory

    Total Slots :
    4 (2-channel)
    Capacity :
    Maximum up to 128GB UDIMM
    Memory Type :
    DDR4 3200/2933/2666 UDIMM
    Memory Size :
    32GB, 16GB, 8GB
    * Refer to support page for more information

  • Expansion Slots

    Total Slot : 4
    Slot Location 1 : PCI-E x8 (Gen3 X4 Link)
    Slot Location 2 : PCI-E x8 (Gen3 X4 Link)
    Slot Location 4 : PCI-E x8 (Gen4 X8 Link)
    Slot Location 6 : PCI-E x16 (Gen4 X16 Link), Auto switch to x8 link if slot 4 is occupied

  • Form Factor

    ATX (12"x9.6", 305mm x 244mm)

  • ASUS Features

    FAN speed control
    Rack Ready (Rack and Pedestal dual use)
    ASUS Control Center

  • Storage

    Storage Controller :
    8 x SATA3 6Gb/s ports by 4 Mini-SAS HD connectors
    2 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode *

    *Gen4 x4 Link & Gen3 x2 Link,gray SATA port will disable when M.2 is SATA signal

    SAS Controller :
    ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
    ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card

  • Networking

    2 x Intel® I210AT + 1 x Mgmt LAN

  • Graphic

    Aspeed AST2600 with 64MB VRAM (VGA from BMC)

  • On Board I/O

    1 x VGA Header (VGA from BMC)
    1 x HDMI (useable only with iGPU)
    1 x TPM header
    1 x COM port
    1 x PS/2 KB/MS port
    1 x Onboard header for optional management card
    6 x Fan Header , 4pin
    1 x SMBus
    1 x Chassis Intruder
    4 x Front LAN LED
    1 x Serial Port Header
    1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
    2 x M.2 Connector
    2 x USB3.2 Gen2 ports
    2 x USB3.2 Gen1 ports
    1 x USB3.2 Gen1 header

  • Back I/O Ports

    2 x USB 3.2 Gen 2
    2 x USB 3.2 Gen 1
    1 x HDMI Port (useable only with iGPU)
    1 x VGA Port (VGA from BMC)
    2 x GbE LAN + 1 x Mgmt LAN
    1 x PS/2 KB/Mouse

  • Management Solution

    ASUS Control Center Enterprise (Optional)
    ASMB10-iKVM for KVM-over-Internet(Optional)

  • Weight

    Gift Box (1-in-1)
    Net Weight : 0.76 KG
    Gross Weight : 1.3 KG
    Bulk Pack (10-in-1)
    Net Weight : 6.9 KG
    Gross Weight : 9.5 KG

  • Environment

    Operation temperature: 10℃ ~ 50℃*
    Non operation temperature: -40℃ ~ 70℃
    Non operation humidity: 20% ~ 90% ( Non condensing)

    *The boundary condition above is based on 8.3W of PCH TDP spec . If the LFM estimate is higher than acceptable value from customer, ASUS can provide boundary condition with raw power for reference.

  • Accessories

    Gift Box (1-in-1)
    1 x Support CD
    1 x I/O shield
    4 x SATA 6G cables
    1 x Plate for LGA1200
    Bulk Pack (10-in-1)
    1 x Support CD
    1 x I/O shield
    1 x Plate for LGA1200

  • Monitoring

    CPU Temperature
    Fan RPM
