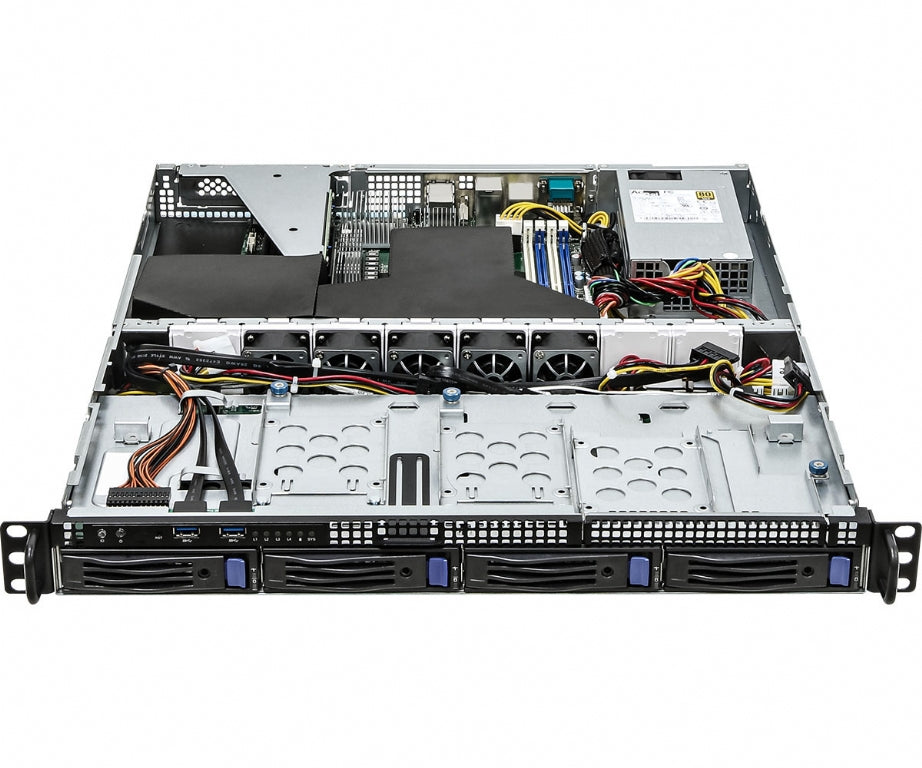

ASRock Rack 1U4LW-X570/2L2T 1U Rackmount Server Barebone - Supports AM4 Ryzen 5000 Series CPU - Single PSU

SKU: 1U4LW-X570/2L2T
£969.97
Sold out
Tax included. Shipping calculated at checkout.
Description 1U Rackmount with 400W PSU supports AMD Ryzen 5000 Series Desktop Processors 4 DDR4 ECC/ non-ECC UDIMM, up to 32GB each 4 Hot-swap 3.5'' HDD/SSD bays, 3 fixed 2.5"...

Out of stock - Contact our specialists on 01283 576848 for more information

Pairs well with

ASRock Rack 1U4LW-X570/2L2T 1U Rackmount Server Barebone - Supports AM4 Ryzen 5000 Series CPU - Single PSU
£969.97

Compatible Products
ASRock Rack 1U4LW-X570/2L2T 1U Rackmount Server Barebone - Supports AM4 Ryzen 5000 Series CPU - Single PSU
£19.99
ASRock Rack 1U4LW-X570/2L2T 1U Rackmount Server Barebone - Supports AM4 Ryzen 5000 Series CPU - Single PSU
£19.99
ASRock Rack 1U4LW-X570/2L2T 1U Rackmount Server Barebone - Supports AM4 Ryzen 5000 Series CPU - Single PSU
£19.99
ASRock Rack 1U4LW-X570/2L2T 1U Rackmount Server Barebone - Supports AM4 Ryzen 5000 Series CPU - Single PSU
£19.99
View details

Description

  1. 1U Rackmount with 400W PSU
  2. supports AMD Ryzen 5000 Series Desktop Processors
  3. 4 DDR4 ECC/ non-ECC UDIMM, up to 32GB each
  4. 4 Hot-swap 3.5'' HDD/SSD bays, 3 fixed 2.5" HDD/SSD bays
  5. 1 FHHL PCIe4.0 x16
  6. 2 RJ45 (10GbE) by Intel® X550-AT2
  7. 2 RJ45 (1GbE) by Intel® i210
  8. Remote management (IPMI)

Specifications

System
Form Factor 1U Rackmount
Dimensions 533.4 x 482.6 x 44.4 mm (21" x 19" x 1.7")
Support MB X570D4U-2L2T
Front Panel
Buttons Power button w/ LED, UID w/LED, System reset
LEDs LANs, HDD activity, System health
I/O Ports 2 Type-A (USB 3.2 Gen1)
External Drive Bay / Storage
Front Side Drive Bay 4 Hot-swap 3.5" HDD/SSD (SATA 6Gb/s) bays
1 Slim ODD (BTO)
Internal Side 3 fixed 2.5" HDD/SSD (SATA 6Gb/s) bays
1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 22110/2280/2260/2242 [CPU]
1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 2280/2260/2242 [FCH]
*Supports PCIe3.0 when using AMD Ryzen™ 4000 and 3000 G-Series Desktop Processors with Radeon™ Graphics
Power Supply
Type Single PSU
Output Watts 400W
Efficiency 80-PLUS Gold
AC Input 100-240V, 50-60Hz
System Fan
Fan 5 PWM Easy-swap 40x28 mm fans
Processor System
CPU Supports:
AMD Ryzen™ 5000 and 3000 Series Desktop Processors
AMD Ryzen™ 4000 and 3000 G-Series Desktop Processors with Radeon™ Graphics
AMD Ryzen™ PRO 5000, 4000 and 3000 Series Desktop Processors
Socket AM4 PGA 1331
Chipset AMD X570
System Memory
Supported DIMM Quantity 4 DIMM slots (2DPC)
Supported Type 288-pin DDR4 ECC* and non-ECC UDIMM
*For AMD Ryzen Desktop Processors with Radeon Graphics, ECC support is only with Processors with PRO technologies.
Max. Capacity per DIMM up to 32GB
Max. DIMM Frequency up to 3200 MHz*
* AMD Ryzen™ 3000 G-Series Desktop Processors with Radeon™ Graphics support up to 2666 MHz
Voltage 1.2V
PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 Supports 1 FHHL PCIe4.0 x16* via RB1UX16_G4
*Supports PCIe3.0 x8 when using AMD Ryzen™ 3000 G-Series Desktop Processors with Radeon™ Graphics
*Supports PCIe3.0 x16 when using AMD Ryzen™ 4000 G-Series Desktop Processors with Radeon™ Graphics
Server Management
BMC Controller ASPEED AST2500
IPMI Dedicated GLAN 1 x Realtek RTL8211E for dedicated management GLAN
Graphics
Controller ASPEED AST2500:
1 DB15 (VGA)
AMD Ryzen Desktop Processors with Radeon Graphics:
1 HDMI
VRAM DDR4 16MB
Rear I/O
UID Button/LED 1 UID button w/ LED
VGA Port 1 DB15 (VGA)
Serial Port 1 DB9 (COM)
USB 3.2 Gen2 Port 2 Type-A (USB3.2 Gen1)
RJ45 2 RJ45(10GbE) by Intel® X550-AT2
2 RJ45(1GbE) by Intel® i210
1 dedicated IPMI
System BIOS
BIOS Type 32MB AMI UEFI Legal BIOS
BIOS Features Plug and Play (PnP), ACPI 2.0 Compliance Wake Up Events, SMBIOS 2.8.0 Support, ASRock Rack Instant Flash
Environment
Temperature Operation temperature: 10°C ~ 35°C* / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)
