| System |
| Form Factor |

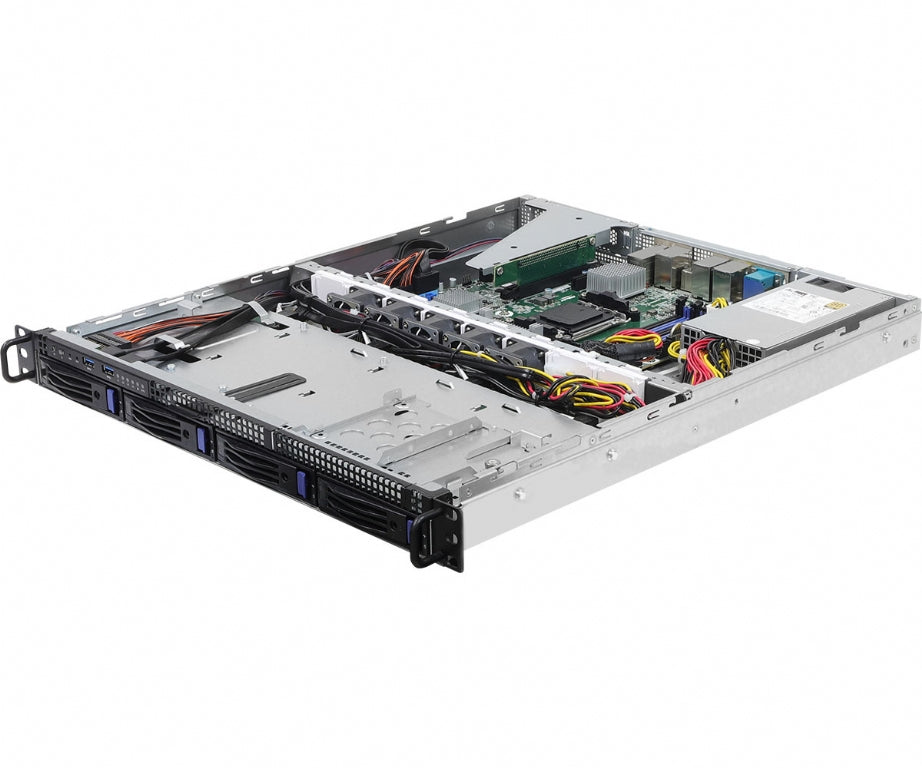

1U Rackmount |
| Dimensions |
534.35 x 430 x 43.3 mm (21” x 16.9” x 1.7”) |
| Support MB |
B650D4U-2L2T/BCM |
| Front Panel |
| Buttons |
Power w/ LED, UID w/LED, System reset |
| LEDs |
LANs, HDD activity, System health |
| I/O Ports |
2 Type-A (USB3.2 Gen1) |
| External Drive Bay / Storage |
| Front Side Drive Bay |
4 Hot-swap 3.5" SATA drive bays |
| Internal Side |
1 M-key (PCIe5.0 x4), supports 2280/2242 form factor [CPU] |
| Power Supply |
| Type |
Single PSU |
| Output Watts |
400W |
| Efficiency |
80-PLUS Gold |
| System Fan |
| Fan |
5 PWM Hot-swap 40x28 mm fans |
| Processor System |
| CPU |
Supports AMD EPYC™ 4004 and AMD Ryzen™ 8000/7000 Series Processors |
| Socket |
Single Socket AM5 (LGA 1718) |
| Thermal Design Power |
Up to 170W *Based on Cinebench R23 tool to meet AMD criteria |
| Chipset |
AMD B650 |
| System Memory |
| Supported DIMM Quantity |
4 DIMM slots (2DPC) |
| Supported Type |
DDR5 288-pin ECC/non-ECC UDIMM |
| Max. Capacity per DIMM |
48GB |
| Max. DIMM Frequency |
5200 MHz (1DPC); 3600 MHz (2DPC) |
| Voltage |
1.1V |
| PCIe Expansion Slots (SLOT7 close to CPU) |
| PCIe x 16 |
Rear: 1 FH PCIe4.0 x16 via RB1UX16_G4 |
| Ethernet |
| Additional GbE Controller |
Broadcom BCM57416: 2 RJ45 (10GbE)
Intel® i210: 2 RJ45 (1GbE) |
| Server Management |
| BMC Controller |
ASPEED AST2600 |
| IPMI Dedicated GLAN |
1 Realtek RTL8211F for dedicated management GLAN |
| Graphics |
| Controller |
ASPEED AST2600:
1 DB15 (VGA), 1 (15-pin) header
AMD Processors with Graphics:
1 HDMI, 1 DisplayPort |
| Rear I/O |
| UID Button/LED |
1 UID button w/ LED |
| VGA Port |
1 DB15 (VGA), 1 DisplayPort, 1 HDMI |
| Serial Port |
1 DB9 (COM) |
| USB 3.2 Gen1 Port |
4 Type-A (USB3.2 Gen1) |
| RJ45 |
2 RJ45 (10GbE)
2 RJ45 (1GbE)
1 dedicated IPMI |
| System BIOS |
| BIOS Type |
AMI UEFI BIOS; 256Mb (32MB) SPI Flash ROM |
| BIOS Features |
Plug and Play, ACPI 6.4 compliance wake up events, SMBIOS 3.5 |
| Hardware Monitor |
| Temperature |
CPU, DDR, MB, Card Side, Chipset, 10G LAN, M.2 slot |
| Fan |
Fan Tachometer, Multi-Speed Control, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) |
| Voltage |
VOLT_3VSB, VOLT_5VSB, VOLT_P0_VCORE, VOLT_P0_VSOC, VOLT _VMEM, VOLT _VMISC, VOLT_1.8V_PT21, VOLT_VSUS10, VOLT_VDD10, VOLT_V10_PHY_DIG, VOLT_VDD_1P8, VOLT_MD_VDDO, VOLT_BAT, VOLT_3V, VOLT_5V, VOLT_12V |
| Supported OS |
| OS |
Microsoft® Windows:
- Windows® 10 (64 bit)
- Windows® 11 (64 bit)
Linux:
- RedHat Enterprise Linux Server 8.7 (64bit)
- CentOs 8.5 ( 64 bit)
- SUSE SLES 15.4(64 bit) / 15.2(64 bit)
- UBuntu 22.04.1 (64 bit) / 21.10 (64 bit) / 21.04 (64 bit)
Hypervisor:
- VMWare® ESXi 8.0 / 7.0 U3g |
| Environment |
| Temperature |
Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity |
Non operation humidity: 20% ~ 90% ( Non condensing) |
