The Server Group Ltd

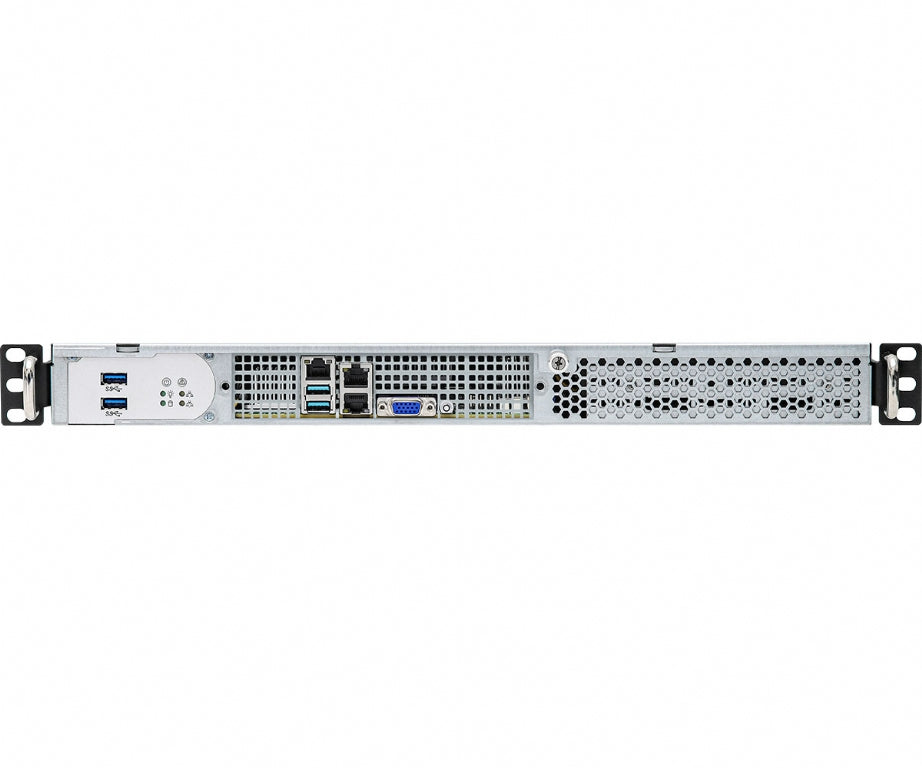

ASRock Rack 1U2-X570/2T Rackmount Server Barebone - Supports AMD Ryzen 5000 Series CPU - Ultra Short Depth - Single PSU

SKU: 1U2-X570/2T
£819.50
Sold out
Tax included. Shipping calculated at checkout.
System Form Factor 1U Dimensions 250 x 430 x 43.5mm (9.8'' x 16.9'' x 1.7'') Support MB X570D4I-2T Front Panel Buttons Power switch, System reset LEDs Power status, HDD, LAN...

Out of stock - Contact our specialists on 01283 576848 for more information

Pairs well with

ASRock Rack 1U2-X570/2T Rackmount Server Barebone - Supports AMD Ryzen 5000 Series CPU - Ultra Short Depth - Single PSU
£819.50

Compatible Products
ASRock Rack 1U2-X570/2T Rackmount Server Barebone - Supports AMD Ryzen 5000 Series CPU - Ultra Short Depth - Single PSU
£19.99
ASRock Rack 1U2-X570/2T Rackmount Server Barebone - Supports AMD Ryzen 5000 Series CPU - Ultra Short Depth - Single PSU
£19.99
ASRock Rack 1U2-X570/2T Rackmount Server Barebone - Supports AMD Ryzen 5000 Series CPU - Ultra Short Depth - Single PSU
£19.99
ASRock Rack 1U2-X570/2T Rackmount Server Barebone - Supports AMD Ryzen 5000 Series CPU - Ultra Short Depth - Single PSU
£19.99
View details
System
Form Factor 1U
Dimensions 250 x 430 x 43.5mm (9.8'' x 16.9'' x 1.7'')
Support MB X570D4I-2T
Front Panel
Buttons Power switch, System reset
LEDs Power status, HDD, LAN activity LEDs
I/O Ports 1 DB15 (VGA)
2 Type-A (USB3.2 Gen1)
2 Type-A (USB3.2 Gen2)
2 RJ45 (10GbE) by Intel® X550-AT2
1 UID w/ LED
IPMI LAN 1 dedicated IPMI
External Drive Bay / Storage
Internal Side Supports 2 fixed 3.5” drives and 2 fixed 2.5'' 7mm drives
1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 2280
*Supports PCIe3.0 when using AMD Ryzen™ 4000 and 3000 G-Series Desktop Processors with Radeon™ Graphics
Power Supply
Type Single PSU
Output Watts 265W
Efficiency 80-Plus Bronze
AC Input 100-240V, 50-60Hz
System Fan
Fan 3 Easy-swap 40x28 mm fans
Processor System
CPU Supports:
AMD Ryzen™ 5000 and 3000 Series Desktop Processors
AMD Ryzen™ 4000 and 3000 G-Series Desktop Processors with Radeon™ Graphics
AMD Ryzen™ PRO 5000, 4000 and 3000 Series Desktop Processors
Socket AM4 PGA 1331
Thermal Design Power 105W
Chipset AMD X570
System Memory
Supported DIMM Quantity 4 DDR4 SO-DIMM slots (2DPC)
Supported Type Supports DDR4 260-pin ECC*/non-ECC SO-DIMM
*For AMD Ryzen Desktop Processors with Radeon Graphics, ECC support is only with Processors with PRO technologies.
Max. Capacity per DIMM up to 32GB
Max. DIMM Frequency One DIMM:
1R DIMM @2933MT/s; 2R/2DR DIMM@2400T/s
Two DIMMs:
2400MT/s
Voltage 1.2V
Server Management
BMC Controller ASPEED AST2500
IPMI Dedicated GLAN 1 x Realtek RTL8211E for dedicated management GLAN
Graphics
Controller ASPEED AST2500
VRAM DDR4 16MB
System BIOS
BIOS Type 32MB AMI UEFI Legal BIOS
BIOS Features Plug and Play (PnP)
ACPI 2.0 Compliance Wake Up Events
SMBIOS 2.8.0 Support
ASRock Rack Instant Flash
Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)
1 / 1
Press & drag to view

Specification & Downloads

File Size Date Download
Document file
3.5Mb/2024-05-01
3.5Mb 2024-05-01 Download
Document file
3.5Mb/2024-05-01
3.5Mb 2024-05-01 Download
Document file
3.5Mb/2024-05-01
3.5Mb 2024-05-01 Download
Document file
3.5Mb/2024-05-01
3.5Mb 2024-05-01 Download

Every server fully supported in house by the Server Group

Our team are always on hand to support setup & maintenance of any server we sell to ensure that you have the easiest experience possible.

Best in class warranty

The Server group is proud to offer a 3-Year Return to Base Warranty as Standard on every server we supply to ensure that if you have any faults no matter how large or small our expert team will be ready to solve any issue. We also offer a service to provide On-Site Upgrades to your server at any point within its lifespan.
