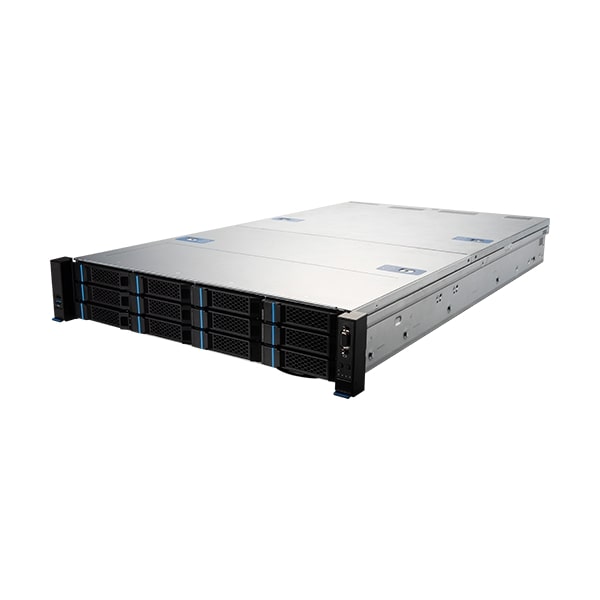

MSI S2205-01 2U Rackmount Dual Intel Xeon Scalable Server - 12x Hot-Swap Bays - 2x Gigabit LAN - Redundant PSU

2U

Dual 4th/5th Generation Intel® Xeon® Scalable Processors, TDP up to 350W

Intel® C741

(32) DDR5 DIMM Slots, 8 channels per CPU(2DPC), RDIMM/3DS
- Max. Frequency
5th Gen Intel® Xeon®: 5600 MT/s (1DPC), 4400 MT/s (2DPC)
4th Gen Intel® Xeon®: 4800 MT/s (1DPC), 4400 MT/s (2DPC)
- Max Capacity per DIMM:
RDIMM: 96GB
RDIMM-3DS: 256GB

No onboard LAN
(2) 1000GBase-T Ethernet Ports w/ optional M.2 LAN module NAD-101

(2) M.2 2280/22110 PCIe3.0 x2 ports from PCH

(12) Hot-swap 3.5"/2.5" drive bays support SATA 3.0/SAS/U.2 PCIe 4.0 NVMe
*SAS card is required for SAS devices support

Riser 1:
(1) PCIe 4.0 x16 slot from CPU0 supports FHFL GPU card
(2) PCIe 4.0 x16(x8 signal) slots from CPU0 support FHHL PCIe card
Riser 2:
(1) PCIe 4.0 x16 slot from CPU1 supports FHFL GPU card
(2) PCIe 4.0 x16(x8 signal) slots from CPU1 support FHHL PCIe card
Riser 3:
(1) PCIe 4.0 x16 slot from CPU1 supports FHFL GPU Card
OCP3.0:
(1) PCIe 4.0 x16 OCP3.0 slot from CPU0, supports NCSI function

(12) Hot-swap 3.5"/2.5" drive bays
(2) USB 2.0 Type-A Port
(1) VGA D-Sub Port
(1) System Power LED Button
(1) UID LED Button
(1) Reset Button
(4) Status LEDs: Fault/LAN/M.2

(1) 1000Base-T Dedicated Server Management Port
(2) USB 2.0 Type-A Port
(1) VGA D-Sub Port
(1) COM RJ45 Port
(1) UID LED Button

Intel® SATA RAID 0/1/10/5
(1) VROC header for Intel® VROC key

ASPEED AST2600 with AMI MegaRAC based firmware supporting IPMI 2.0 and DMTF Redfish API
Dual BIOS and BMC
(1) 1000Base-T Dedicated Server Management Port (Realtek RTL8211FD-CG)
(1) MicroSD card slot for BMC log

(2) EVAC air cooling modules for max. 350W CPU
(6) 6038 Hot-swap System Fans
(1) Air duct supports FL GPU cards

System Operating Temperature: 0°C ~ 35°C
Non-operating Temperature: -20°C ~ 70°C
Non-operating Relative Humidity: 5% ~ 85% (non-condensing)

CE, FCC (Class A)

438mm(17.2") Wx 87mm(3.4") Hx 770mm(30.3")D

(1+1) Redundant 2000W CRPS 80+ Platinum

TPM 2.0

(1) Barebone G2205-01
(1) Quick guide
(1) Slide rail Kit
(2) CPU Coolers
(2) CRPS PSUs
(2) Power cables
(2) Power cable adapters for GPU

(1) TPM header with SPI interface

(1) Quick guide: G52-S3222X2-Q13
(1) Slide rail Kit: E21-S258030-C27
(2) CPU Coolers: E31-0807360-824
(2) CRPS PSUs: S93-0913131-S14
(2) Power cables: K33-3001002-I45 for NA
(2 )Power cable adapters for GPU: (1)K1G-3008085-V03 & (1)K1G-3008086-V03
(1) Air duct: OE2-S322001-C27
(1) Air duct (Mylar): E26-S322020-LB4

TPM2.0 module: TPM20-IR
M.2 LAN module: MEZ-E11
