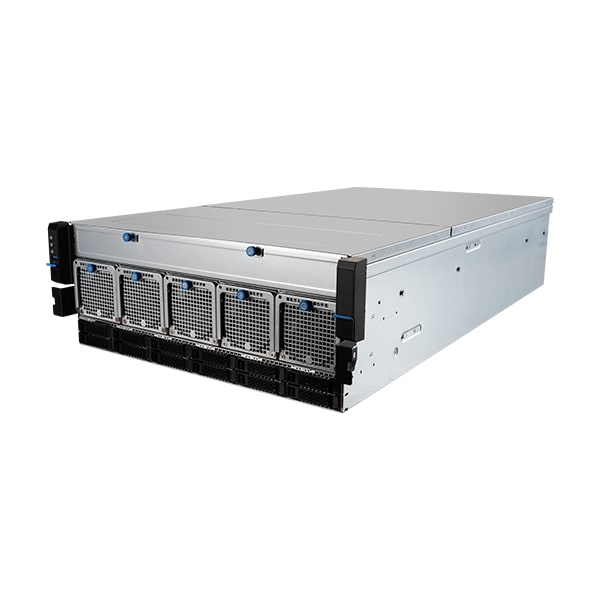

MSI G4101-01 4U Rackmount Single AMD EPYC GPU Server - 4x Triple-Width GPU Support - 12x Hot-Swap Bays - 1x Gigabit LAN - Redundant PSU

SKU: G4101-01
£0.00
Sold out
Tax included. Shipping calculated at checkout.
Form Factor 4U Dimensions 438mm(17.2")W x 176mm(6.9")H x 831mm(32.7")D Processor Single AMD EPYC™ 9004 Series processor and EPYC™ 9004 Series processors with AMD 3D V-Cache™ Technology, up to TDP 400W...

Out of stock - Contact our specialists on 01283 576848 for more information

Pairs well with

MSI G4101-01 4U Rackmount Single AMD EPYC GPU Server - 4x Triple-Width GPU Support - 12x Hot-Swap Bays - 1x Gigabit LAN - Redundant PSU
£0.00
View details
Form Factor
4U
Dimensions
438mm(17.2")W x 176mm(6.9")H x 831mm(32.7")D
Processor
Single AMD EPYC™ 9004 Series processor and EPYC™ 9004 Series processors with AMD 3D V-Cache™ Technology, up to TDP 400W
Chipset
N/A
Memory
(12) DDR5 DIMM Slots, 1DPC, RDIMM/RIMM-3DS
- Max. Frequency 4800MT/s(1DPC)
- Max. Capacity per DIMM:
RDIMM: 96GB
RDIMM-3DS: 256GB
Storage
(1) M.2 2280/22110 PCIe 3.0 x4 port
(1) M.2 2280/22110 PCIe 3.0 x2 port
Drive Bays
(12) Hot-swap 2.5” U.2 PCIe 4.0 NVMe drive bays
Expansion Slot
(4) PCIe 5.0 x16 slots from CPU, support FHFL triple-wide GPU cards
(2) PCIe 4.0 x16 slots (x8 signal) from CPU
RAID
N/A
Networking
N/A
Front I/O
(12) Hot-swap 2.5” drive bays
(1) USB 3.2 Gen 1 Type-A Port
(1) System Power LED Button
(1) UID LED Button
(1) Reset Button
(5) 8038 Easy-Swap chassis Fans
(4) Status LEDs : M.2/Fault/LAN
Rear I/O
(1) 1000Base-T Dedicated Server Management Port
(2) USB 3.2 Gen 1 Type-A Port
(1) VGA D-Sub Port
(1) COM RJ45 Port
(1) UID LED Button
(3) Status LEDs : Power/M.2/Fault
Server Management
ASPEED AST2600 with AMI MegaRAC based firmware supporting IPMI 2.0 and DMTF Redfish API
Dual BMC
(1) 1000Base-T Dedicated Server Management Port (Realtek RTL8211FD-CG)
Cooling
(1) Liquid cooling module for max. 500W CPU
(5) 8038 Easy-Swap chassis fans
Power Supply
(1+1) 3000W Redundant PSU 80+ Platinum
Environment
System Operating Temperature: 0°C ~ 35°C
Non-operating Temperature: -20°C ~ 70°C
Non-operating Relative Humidity: 5% to 85% (non-condensing)
Certification
CE, FCC (Class A)
Socket
(1) AMD Socket SP5
TPM
(1) TPM header with SPI interface
Security
TPM 2.0
Package Contents
(1) 4U Barebone G4101-01
(1) Quick guide
(1) Slide rail kits
(1) Liquid cooling module
(4) GPU card fixed bracket
(4) Chassis handles
(4) Power cables
Parts List
(1)Quick guide: G52-S3372X1-Q13
(1)Slide rail Kit: E22-S370220-K32
(2)Power supply: S93-0914011-A69(Platinum)
(1)Liquid cooling module: E34-F000100-AQ0
(4) GPU card fixed brackets: E22-S337040-C27
(4) Chassis Handles: E22-S337230-C27
Power cable: (2)K33-3001279-I45 for NA, (2) K33-3001283-I45 for EU
Optional parts
TPM2.0 module: TPM20-IR
