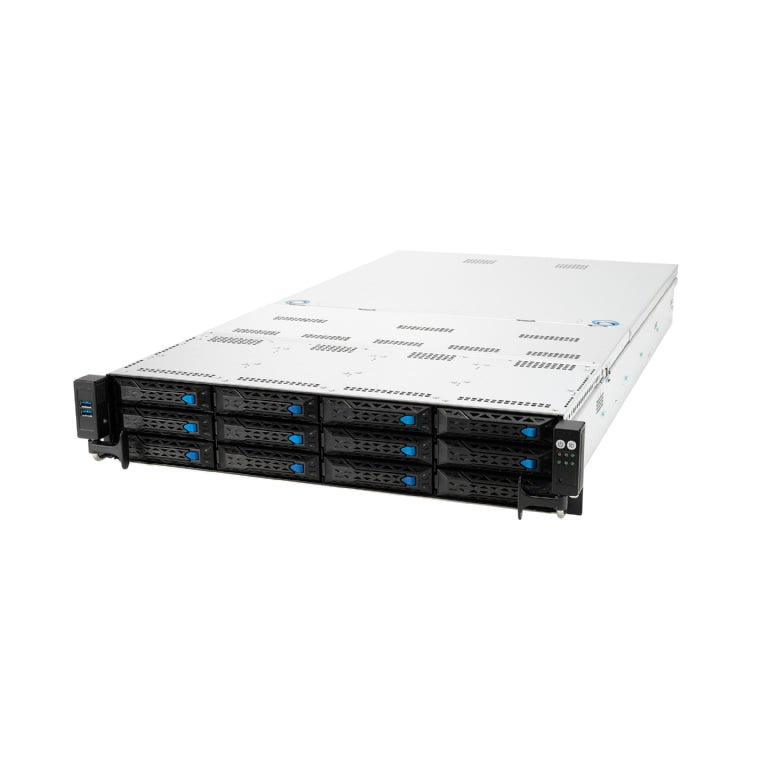

ASUS RS520A-E11-RS12U 2U Rackmount Single 7003 Series AMD EPYC Server - 2x GPU Support - 12x Hot-Swap Bays - Redundant PSU

SKU: 90SF01Q1-M00280
£1,560.08
Sold out
Tax included. Shipping calculated at checkout.
Processor / System Bus 1 x Socket SP3 (LGA 4094) 3rd Gen AMD EPYC™ processors with AMD 3D V-Cache™ technology AMD EPYC™ 7003 Series AMD EPYC™ 7002 Series Memory Total...

Out of stock - Contact our specialists on 01283 576848 for more information

Pairs well with

ASUS RS520A-E11-RS12U 2U Rackmount Single 7003 Series AMD EPYC Server - 2x GPU Support - 12x Hot-Swap Bays - Redundant PSU
£1,560.08

Compatible Products
ASUS RS520A-E11-RS12U 2U Rackmount Single 7003 Series AMD EPYC Server - 2x GPU Support - 12x Hot-Swap Bays - Redundant PSU
£19.99
ASUS RS520A-E11-RS12U 2U Rackmount Single 7003 Series AMD EPYC Server - 2x GPU Support - 12x Hot-Swap Bays - Redundant PSU
£19.99
ASUS RS520A-E11-RS12U 2U Rackmount Single 7003 Series AMD EPYC Server - 2x GPU Support - 12x Hot-Swap Bays - Redundant PSU
£19.99
ASUS RS520A-E11-RS12U 2U Rackmount Single 7003 Series AMD EPYC Server - 2x GPU Support - 12x Hot-Swap Bays - Redundant PSU
£19.99
View details

    • Processor / System Bus


      1 x Socket SP3 (LGA 4094)

      3rd Gen AMD EPYC™ processors with AMD 3D V-Cache™ technology

      AMD EPYC™ 7003 Series

      AMD EPYC™ 7002 Series

    • Memory

      Total Slots :

      16 (8-channel)

      Capacity :

      Maximum up to 4096GB RDIMM

      Memory Type :

      DDR4 3200/2933 RDIMM

      DDR4 3200/2933 LRDIMM

      DDR4 3200/2933 LR-DIMM 3DS

      Memory Size :

      128GB, 64GB, 32GB, 16GB RDIMM

      128GB, 64GB LRDIMM

      256GB, 128GB, 64GB LR-DIMM 3DS

      * Refer to support page for more information

    • Expansion Slots

      2 x PCIe x16 slot(Gen4 x16 link, FHFL)or dual-slot GPU cards or 4 x PCIe x16 slot(Gen4 x8 link, FHFL)

      1 x PCIe x16 slot(Gen4 x8 link, LP)

      1 x OCP 3.0 Mezzanine slo

    • Storage

      Storage Controller :

      CPU Integrated

      SAS Controller :

      ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional)

      ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional)

    • Drive Bays

      12 x 3.5” hot-swap drive bays(12x NVMe/SATA/SAS)
      2 x M.2 connector (NGFF 22110/2280/2260/2242. SATA 6Gb/s*2 or PCIe Gen4 x4 link*1 or PCIe Gen4 x2 link*2)
      *SAS support only from SAS HBA/RAID Card

    • System Fan

      4 (if choose redundant fan, total:8)

    • Networking

      1 x Dual Port Intel I350-AM2 Gigabit LAN controller
      + 1 x Mgmt LAN

    • Graphic

      Aspeed AST2600 with 64MB VRAM

    • Front I/O Ports

      2 x USB 3.2 Gen1 ports

    • Rear I/O Ports


      2 x USB 3.2 Gen1 port

      1 x VGA port

      1 x Management port (RJ45)

      2 x Gigabit LAN ports (RJ45)

    • Switch/LED

      Front Switch/LED:

      1 x Power switch (w/LED)

      1 x Reset Switch

      1 x Location Switch (w/LED)

      1 x HDD Access LED

      1 x Message LED

      LAN 1-2 LED



      Rear Switch/LED:

      1 x Power switch w/LED

      1 x Port 80 LED(Q-Code)

      1 x Location Switch w/LED

      1 x Message LED

    • OS Support

      Please find the latest OS support from https://servers.asus.com/support/os

  • Management Solution

    ASUS Control Center Enterprise (Optional)

    On-Board ASMB10-iKVM for KVM-over-IP

  • Regulatory Compliance

    BSMI, CE, RCM, FCC(Class A)

  • Dimensions

    840mm x 449mm x 88.1mm

    (33.07" x 17.68" x 3.47")

  • Form Factor

    2U

  • Weight

    Net Weight : 18.83KG

    Gross Weight : 28.42KG

  • Power Supply

    1+1 Redundant 800W 80 PLUS Platinum Power Supply
    Rating: 100-127 / 200-240Vac, 10A / 5A (for each inlet), 50-60Hz, Class I

    1+1 Redundant 850W 80 PLUS Titanium Power Supply

    Rating: 100-127 / 200-240Vac, 11A / 5A (for each inlet), 47-63Hz or 240Vdc, 4A

    1+1 Redundant 1200W/1600W 80 PLUS Platinum Power Supply

    Rating: 100-127 / 200-240Vac, 10A / 8A (for each inlet), 50-60Hz or 240Vdc, 6A

    240Vdc Only for China

  • Environment

    Operation temperature: 10℃ ~ 35℃
    Non operation temperature: -40℃ ~ 60℃
    Non operation humidity: 20% ~ 90% (Non condensing)

  • CPU Heatsink/ Cooler

    1
